YNZSY-JB500

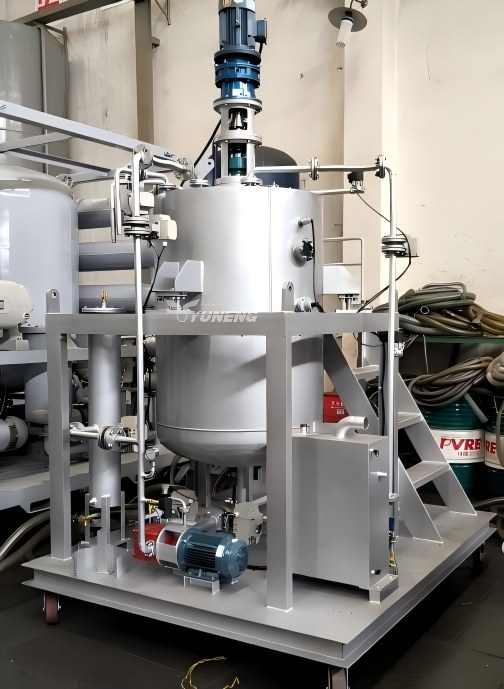

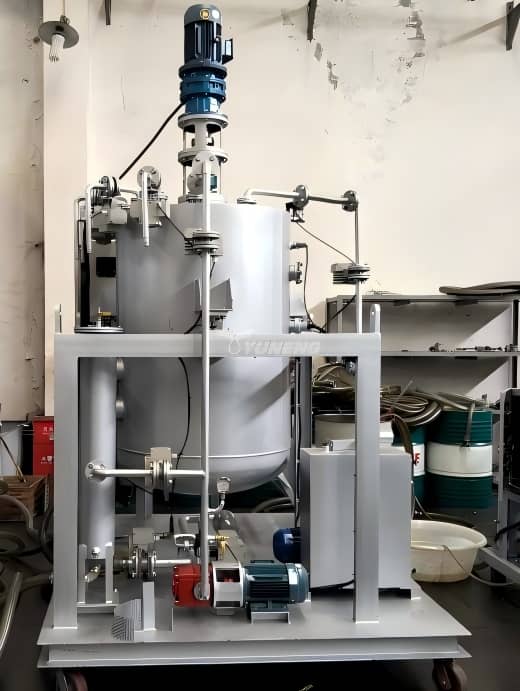

500L Integrated Lube Oil Blending System
This 500L integrated lube oil blending system is designed as an entry level production hub for small scale oil plants and specialized workshops. It serves as a versatile platform for those transitioning from manual mixing to professional lubricant production. The primary focus of this unit is to provide a compact and flexible environment for small batch blending without compromising on the quality of the final product. It is the ideal starting point for businesses focusing on high-value, low-volume specialty oils where maneuverability and quick setup are essential for daily operations.
This compact 500L Integrated Lube Oil Blending System is an all in one solution tailored for the versatile production of high grade lubricants such as transformer and hydraulic oils. Leveraging YUNENG 30 years of manufacturing expertise, this system features a unique fluid internal circulation design. By utilizing multi-channel dispersion instead of standard mechanical agitation, it achieves rapid and thorough mixing of base oils and additives while protecting the oil integrity from localized heat stress. It is the ideal choice for oil plants looking for a flexible and reliable entry level blending solution.
| Item | Name of Parameter | Unit | Total Electric Power |
| Technical parameters | Batch Capacity | L | 500 |
| Working Pressure | Mpa | ≤0.4 | |
| Working Vacuity | MPa | -0.08~-0.095 | |
| Temperature Range | ℃ | 20℃-100℃ | |
| Working Noise | dB(A) | ≤85 | |
| Filtering Accuracy | Μm | ≤20 | |
| Working Power | / | AC 380V 50Hz 3phase 4wire（or per buyer’s option) | |
| Total Electric power | kW | 46 | |
| *Due to different equipment configurations, its dimensions, weight and oil treatment index will vary slightly. | |||
The 500L Integrated Lube Oil Blending System is an all in one solution designed for small scale oil plants. Its compact layout saves significant floor space while providing professional blending results. This system is perfect for those needing to produce specialty oils in smaller quantities with high flexibility.
The technology replaces mechanical blades with a fluid internal circulation system. This protects the oil from local high temperatures that can damage quality. It ensures that additives and base oils are mixed rapidly and uniformly across the entire batch without shearing sensitive molecules.
Built with high-quality carbon steel, this unit supports a wide range of lubricants like transformer and hydraulic oils. It is a durable and cost-effective entry point for any growing business. We offer full customization to meet your specific regional production standards and factory layout requirements.
The 500L Integrated Lube Oil Blending System is primarily applied in high precision environments such as research and development laboratories and specialized lubricant startups. It serves as an essential tool for chemical engineers to conduct pilot testing of new additive formulations before committing to full scale manufacturing. This compact system allows for the rapid development of specialized batches where the focus is on niche market requirements rather than mass volume.
In the power industry, this 500L unit is frequently deployed as a mobile maintenance station for remote electrical substations. It is used for the on-site blending of high-grade transformer oil and insulating fluids, ensuring that grid infrastructure remains stable even in geographically challenging areas. This application is critical for utilities that require immediate, localized oil conditioning without the logistical burden of transporting large quantities of pre-mixed fluids.
Additionally, it is widely utilized in professional racing and high-performance automotive workshops. These environments require the production of custom-blended engine oils and specialized gear lubricants tailored to specific mechanical tolerances. The 500L system provides the necessary flexibility to handle diverse chemical recipes and small-batch production of Industrial Grade Export Standard additives with minimal material waste and maximum precision.
