SF₆ Gas Handling Equipment

SF6 Gas Handling Equipment is an integrated system designed to recover, evacuate, purify, liquefy, store, and refill SF₆ gas during the installation, maintenance, and servicing of gas-insulated electrical equipment. Widely used in GIS substations, circuit breakers, and high-voltage switchgear, it helps prevent SF₆ emissions, extends gas service life, reduces operating costs, and supports compliance with international environmental standards. Modern SF₆ gas handling systems combine vacuum pumping, gas filtration, moisture removal, storage, and automatic refilling into one compact solution, making maintenance faster, safer, and more efficient.

Explore Our SF₆ Gas Handling Equipment Range

What Is SF₆ Gas Handling Equipment?

SF₆ Gas Handling Equipment is a specialized maintenance system developed for the complete lifecycle management of sulfur hexafluoride (SF₆) gas used in high-voltage electrical equipment. Rather than serving a single purpose, it integrates multiple processes—including gas recovery, vacuum evacuation, filtration, purification, storage, and refilling—into one efficient solution.

SF₆ gas has been widely adopted as an insulating and arc-quenching medium because of its excellent dielectric strength and arc interruption performance. It is commonly used in gas-insulated switchgear (GIS), circuit breakers, ring main units (RMUs), gas-insulated transmission lines (GIL), and other critical power transmission and distribution equipment. During installation, inspection, overhaul, or equipment replacement, the enclosed SF₆ gas must be safely removed and managed without releasing it into the atmosphere.

A professional SF₆ gas handling system enables maintenance teams to recover used gas, remove moisture, particles, and decomposition products, store the recovered gas under pressure, and refill qualified gas back into electrical equipment. This closed-loop process reduces gas consumption, minimizes environmental impact, and shortens maintenance downtime.

Why Is Proper SF₆ Gas Handling Important?

Proper SF₆ gas handling is essential for maintaining the safety, reliability, and long-term performance of high-voltage electrical systems. During equipment commissioning, routine maintenance, or decommissioning, uncontrolled gas release can increase operating costs, reduce equipment performance, and create unnecessary environmental impact.

A dedicated SF₆ gas handling system allows operators to safely recover and reuse valuable insulating gas while maintaining gas quality throughout the maintenance process. By operating in a closed-loop system, the equipment significantly reduces gas losses and prevents contamination caused by moisture, air, dust, or decomposition by-products entering the gas circuit.

Key benefits include:

• Minimized SF6 gas emissions through closed-loop recovery and storage.
• Lower operating costs by recycling and reusing qualified SF6 gas instead of replacing it.
• Improved equipment reliability by supplying clean, dry, high-purity insulating gas.
• Enhanced maintenance efficiency with integrated recovery, evacuation, purification, and refilling functions.
• Reduced equipment downtime through faster servicing and automated operation.
• Compliance with international environmental and electrical industry standards, helping utilities meet increasingly strict maintenance and emission management requirements.

For organizations responsible for GIS substations, circuit breakers, and other gas-insulated equipment, proper SF₆ gas management has become a critical part of preventive maintenance and sustainable asset management.

Main Functions of SF₆ Gas Handling Equipment

A modern SF₆ Gas Handling Equipment system performs much more than simple gas recovery. It integrates several maintenance functions into one compact platform, allowing technicians to complete the entire gas servicing process safely and efficiently.

• SF₆ Gas Recovery – Recover used SF₆ gas from electrical equipment into sealed storage tanks without releasing gas into the atmosphere. High-performance compressors maximize recovery efficiency while reducing gas loss.
• Vacuum Evacuation – Remove residual gas, air, and moisture from switchgear and gas pipelines before refilling. A high-vacuum pump helps create the clean internal environment required for reliable insulation performance.
• Gas Purification – Filter recovered SF₆ gas to remove moisture, oil vapor, solid particles, and decomposition products. This improves gas quality and extends the service life of expensive insulating gas.
• Gas Storage – Store recovered SF₆ gas safely in pressure-rated cylinders or integrated storage tanks. Liquefaction technology allows larger gas volumes to be stored efficiently while minimizing leakage risks.
• SF₆ Gas Refilling – Transfer purified or new SF6 gas back into GIS equipment with precise flow and pressure control, ensuring accurate filling and consistent equipment performance.
• Pressure Monitoring and Control – Integrated pressure gauges, sensors, and automatic control systems continuously monitor operating conditions throughout recovery, evacuation, and filling processes to improve operational safety and efficiency.
• Intelligent Automation – Advanced models can be equipped with PLC control, touchscreen interfaces, automatic weighing systems, and programmable operating modes, simplifying maintenance procedures while reducing manual intervention.

How SF6 Gas Handling Equipment Works

SF6 Gas Handling Equipment is designed to complete the entire gas servicing cycle in a safe, closed-loop process. Instead of treating gas recovery, purification, evacuation, and refilling as separate operations, the system combines them into one integrated workflow. This improves maintenance efficiency, reduces gas loss, and helps ensure that gas-insulated electrical equipment is returned to service with clean, high-quality SF6 gas.

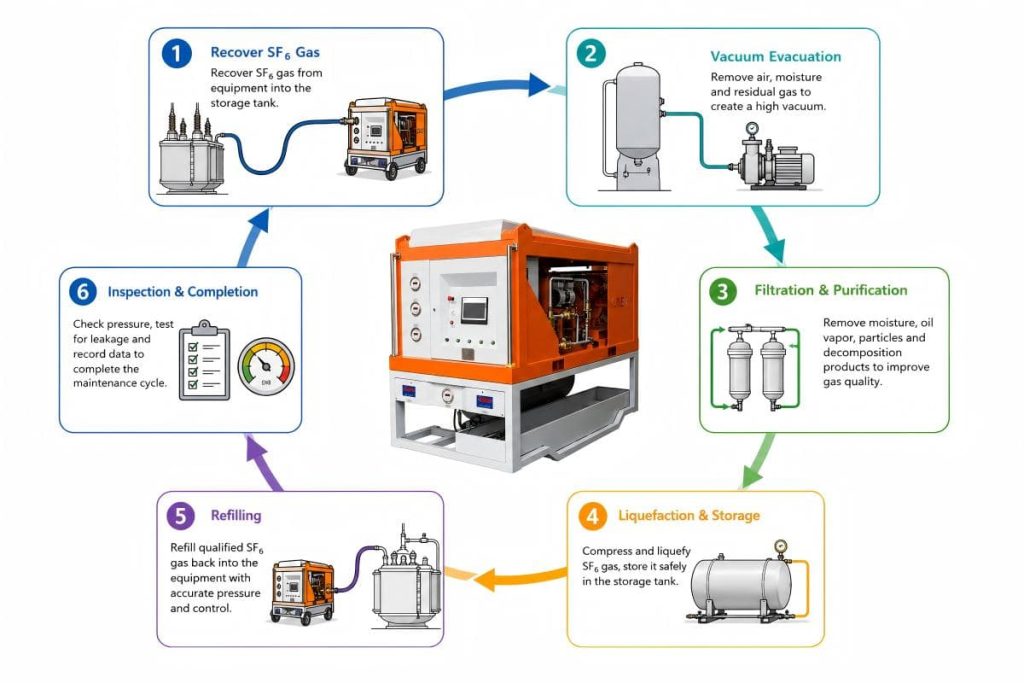

Step 1 – Recover SF6 Gas

The process begins by connecting the equipment to the GIS switchgear, circuit breaker, or other SF6-insulated apparatus. A high-performance compressor transfers the existing SF6 gas from the equipment into a sealed storage tank. Because the recovery system operates in a closed circuit, gas emissions are minimized while valuable SF6 is preserved for future reuse.

Step 2 – Vacuum Evacuation

After gas recovery is completed, the vacuum pump removes residual gas, air, and moisture from the equipment and connecting pipelines. Creating a deep vacuum helps eliminate contaminants that could reduce insulation performance or affect equipment reliability after refilling.

Step 3 – Gas Filtration and Purification

Recovered SF6 gas passes through a multi-stage filtration system designed to remove moisture, oil vapor, solid particles, and decomposition products generated during electrical operation. High-efficiency filters and drying units restore gas quality and improve its suitability for reuse in high-voltage equipment.

Step 4 – Liquefaction and Safe Storage

Purified SF6 gas is compressed and stored in pressure-rated cylinders or integrated storage tanks. Liquefaction technology increases storage efficiency by reducing gas volume, allowing larger quantities of recovered gas to be stored safely while minimizing transportation and handling risks.

Step 5 – SF6 Gas Refilling

Once maintenance or installation work has been completed, qualified SF6 gas is transferred back into the electrical equipment. Accurate pressure control and flow regulation ensure that the required gas density is achieved, supporting stable insulation and arc-quenching performance throughout normal operation.

Step 6 – System Inspection and Completion

Before disconnecting the equipment, operators verify pressure stability, check for leakage, and confirm that the gas handling cycle has been completed successfully. Modern systems can automatically record operating parameters, making maintenance documentation easier and supporting long-term asset management.

Applications Across the Power Industry

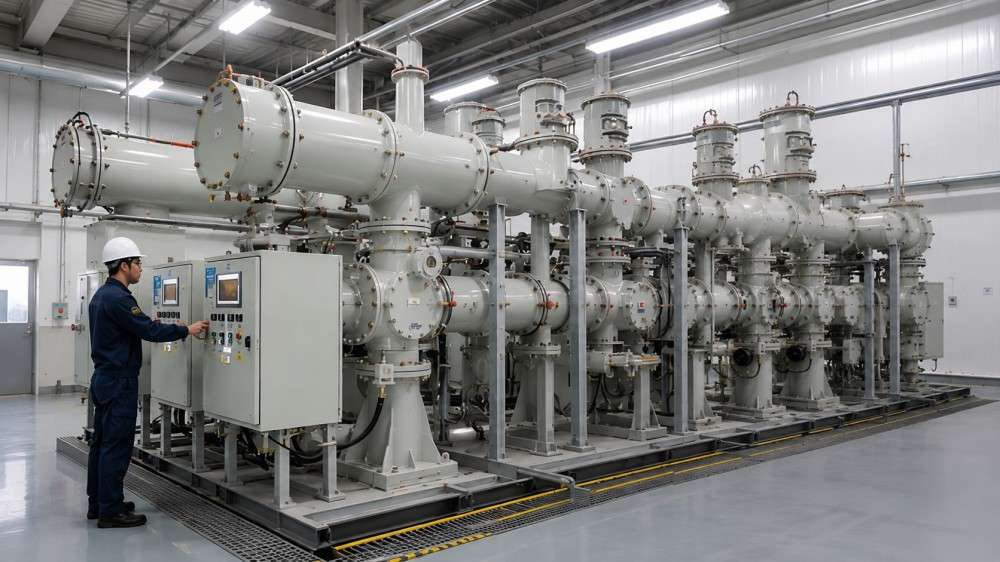

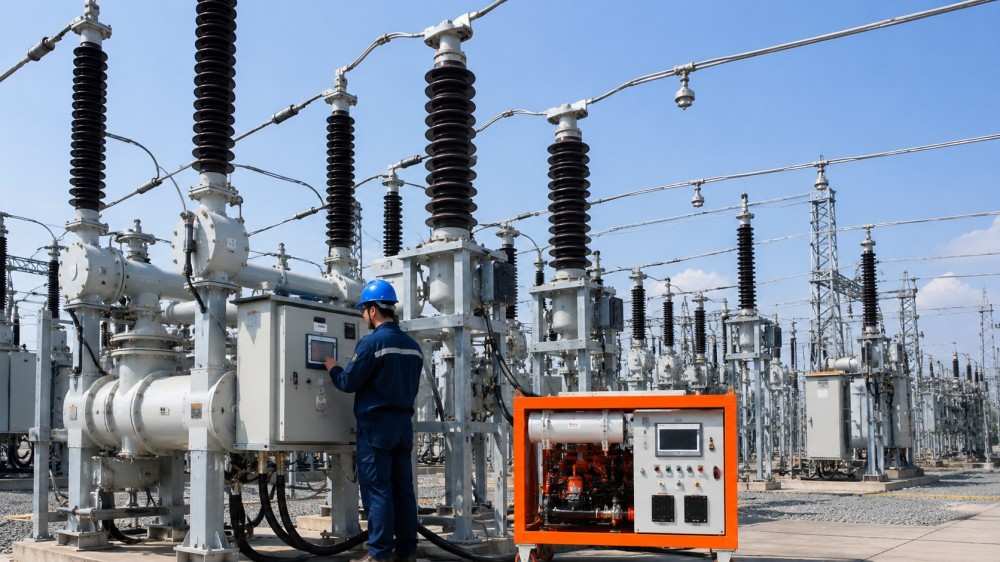

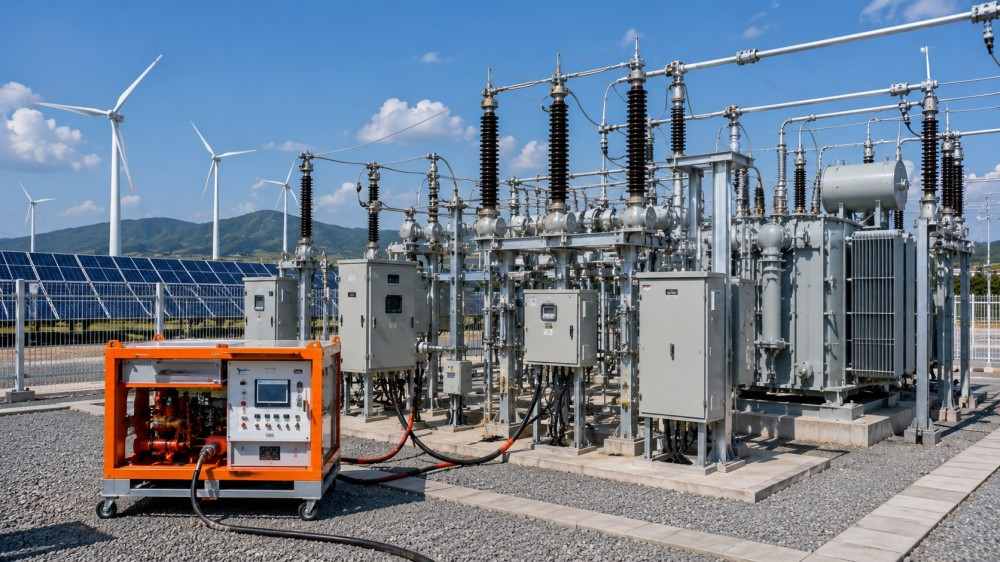

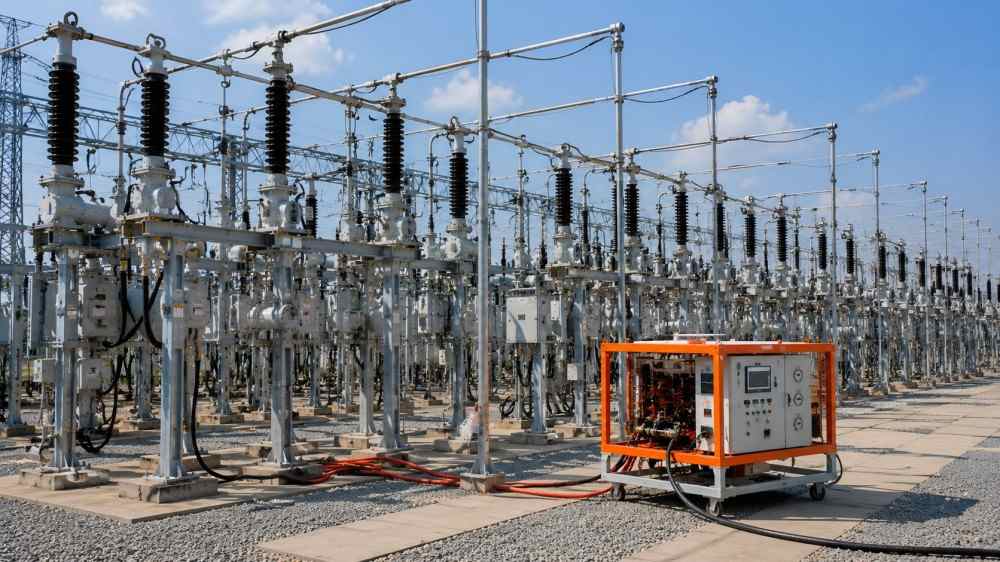

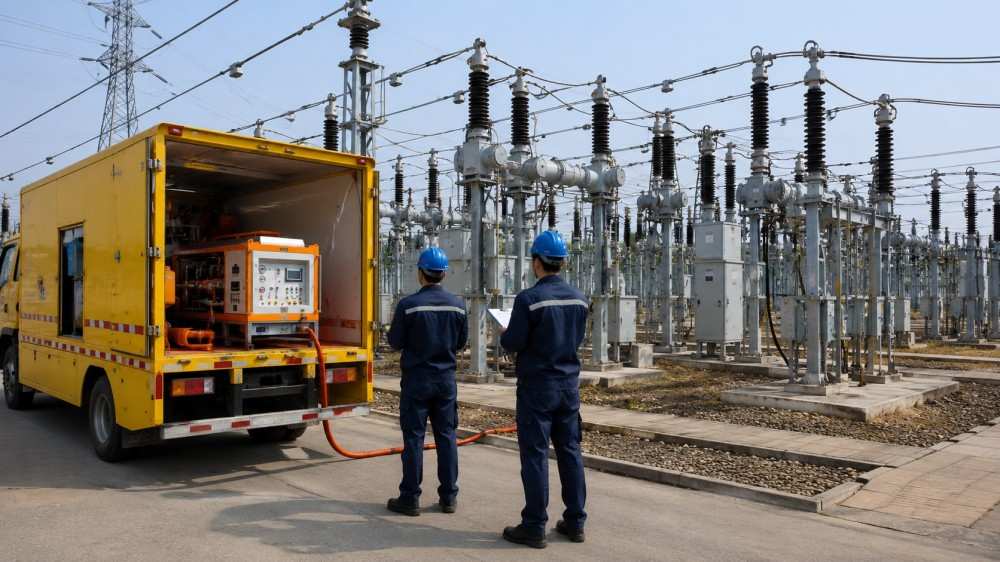

SF6 Gas Handling Equipment is widely used throughout the electrical power industry wherever SF6-insulated equipment requires installation, maintenance, testing, or refurbishment. Its flexibility makes it suitable for utilities, equipment manufacturers, engineering contractors, and industrial power users managing high-voltage assets.

Industry Standards & Compliance

Reliable SF₆ gas handling equipment should comply with internationally recognized electrical and environmental standards to ensure safe operation, accurate gas management, and long-term equipment reliability. Following these standards also helps utilities and manufacturers maintain consistent maintenance procedures across different projects.

Standard	Purpose
IEC 60376	Defines the quality requirements for new SF6 gas used in electrical equipment.
IEC 60480	Specifies the evaluation and reuse criteria for recovered SF6 gas after maintenance.
IEC 62271 Series	Covers the design, operation, testing, and maintenance of high-voltage switchgear and controlgear.
IEEE C37 Series	Provides guidance for high-voltage circuit breakers and gas-insulated electrical equipment used in North America.
GB/T 8905	Chinese standard covering technical requirements for SF6 gas used in electrical applications.
