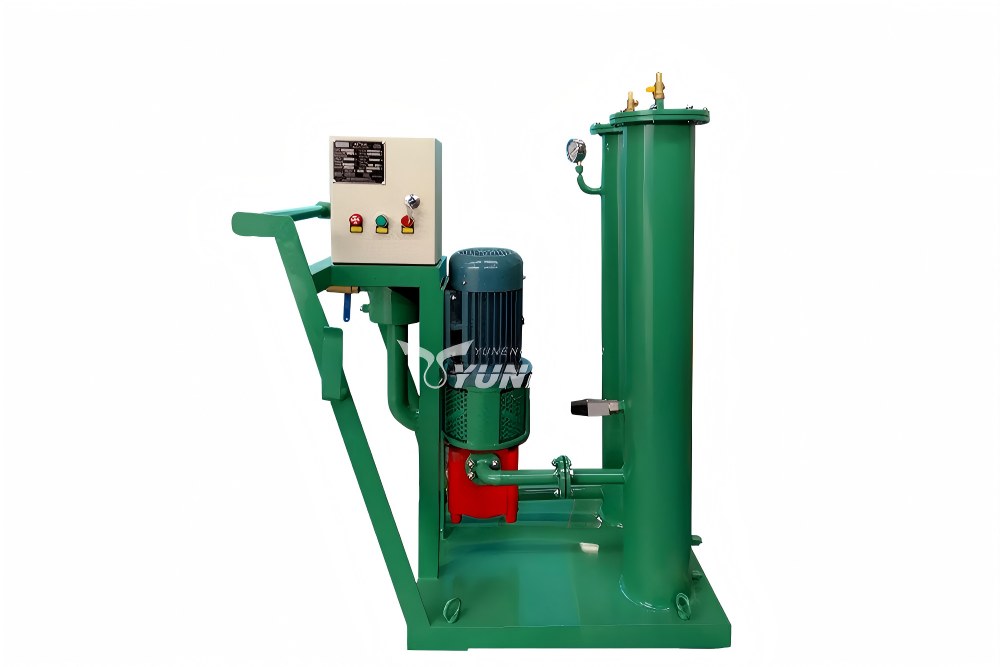

YL series Mobile Precision Oil Purifier and Oiling Machine
The YL series mobile precision oil purifier and oiling machine uses a multi-stage filtration system. It is easy to operate and easy to maintain. Besides, it is suitable for filtering various impurities such as insulating oil, turbine oil, mechanical oil and hydraulic oil. It can be equipped with different filter elements. Low cost and high filtration precision are the regenerative products of plate and frame pressure oil purifiers.
Share to
Oil Purifier and Oiling Machine Features:
- The YL series mobile precision oil purifier and oiling machine apply vacuum flash separation technology and steps evaporation technology, high-efficiency dehydration, and emulsification to make oil quickly reach the standard of use.
- The safe and reliable electric heating system adopts carbon fiber heating technology to ensure heating and uniform oil temperature stability while reducing energy consumption.
- Germany imported a multi-stage precision filter element, which can effectively remove all kinds of impurities and encrypt it step by step, with a large amount of dirt and long service life.
- YL series mobile precision oil purifier and oiling machine adopts Japan Omron far-infrared defoaming technology to ensure that the equipment will not spray oil during operation, safe and stable operation.
- Automatic overload protection, automatic pressure shutdown, ensuring the safe operation of the whole machine.
- This machine is equipped with a trailer device on the basis of the oil filter machine to facilitate fieldwork.
- In addition to oil filter equipment, we also provide products for testing oil, as well as dry air generators, etc., and have a variety of customized equipment to choose from.
Parameters
| Parameter | Type Unit | YL-50 | YL-80 | YL-100 | YL-150 | YL-200 |
| Flow Rate | L/min | 50 | 80 | 100 | 150 | 200 |
| Motor Power | KW | 1.1 | 1.5 | 2.2 | 3 | 4.4 |
| Inlet/Outlet Diameter | mm | 32/25 | 38/32 | 44/38 | 48/44 | 64/48 |
| Weight | kg | 100 | 120 | 150 | 200 | 260 |
| Working Pressure | Mpa | ≤0.5Mpa | ||||
| Power Supply | 50Hz380V 3-Phase 4-Wire (or as requested) | |||||
| Filtering accuracy | µm | ≤5 | ||||
| Delivery lift | m | ≥15 |
The machine size, weight will change slightly due to different configurations
Detailed Images
