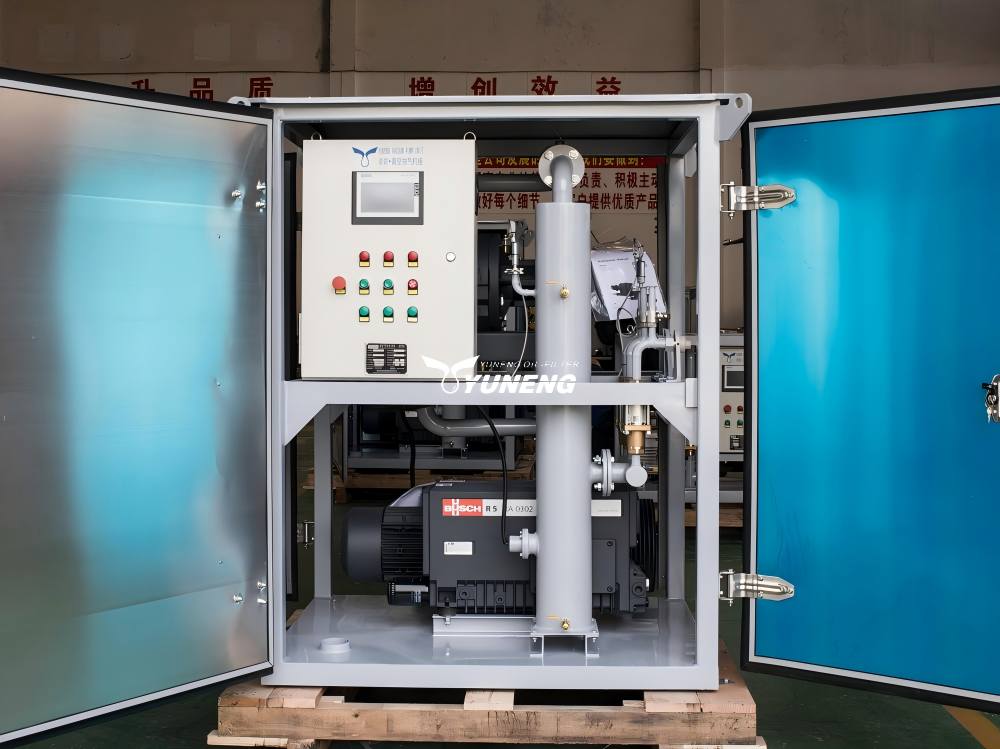

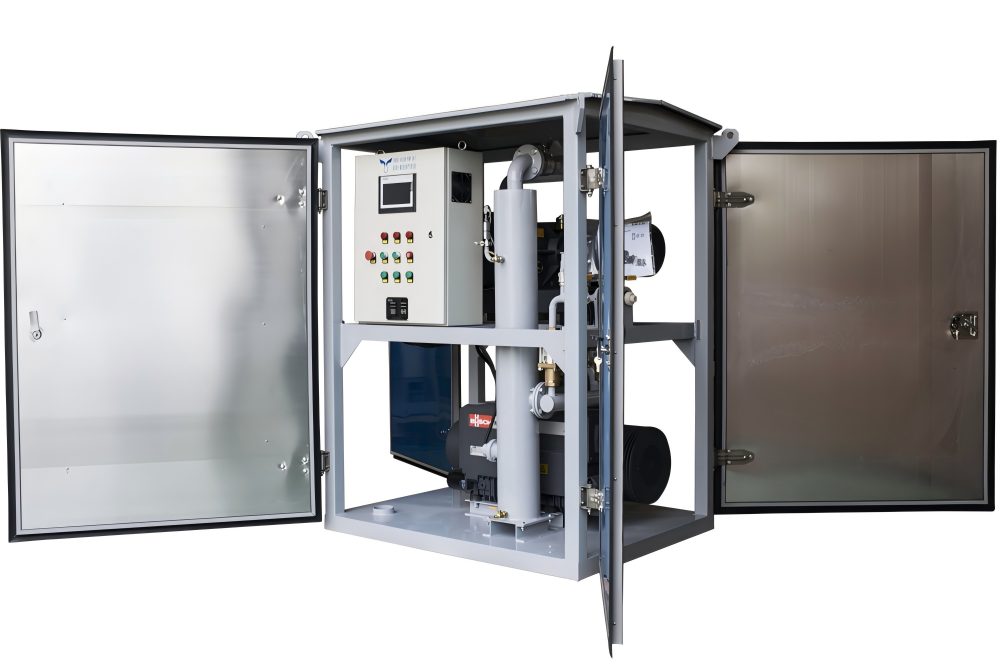

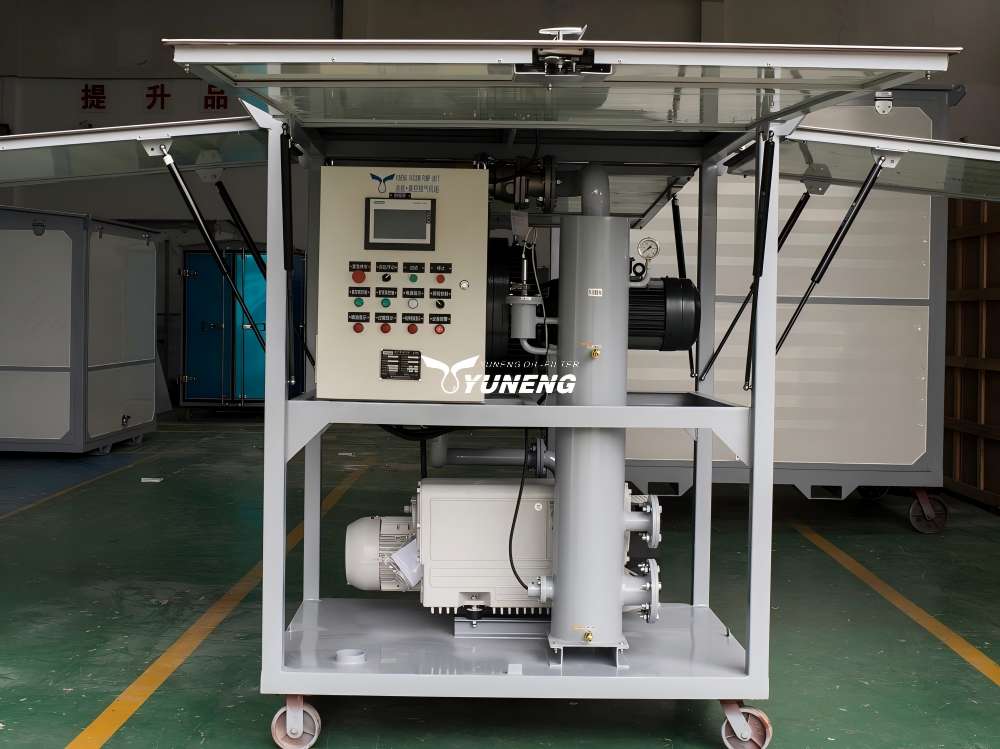

ZJ-300
1000m3/h Industrial Vacuum Processing Machine
- The YUNENG1000m3/h industrial vacuum processing machine has a fast start-up speed and fast air extraction.
- It is especially suitable for the vacuumization of transformers.
- It can also be used for vacuumization in vacuum metallurgy, pharmaceutical, paint, welding, electronics, and other industries.
- It can also be used as a backing pump for large vacuum systems.
The ZJ-300 is an industrial-grade vacuum station for medium transformers up to 220 kV. It features a high flow rate and strong evacuation capacity, ideal for factory production and large on-site maintenance tasks.
The unit supports stable 24/7 operation. It integrates a dedicated GIS vacuum interface for professional vacuum treatment of GIS equipment in high-voltage substations.
| Item | Name of Parameter | Model/Unit | ZJ-300 |
| Technical parameters | Pumping rate | L/s | 300 |
| Limit vacuum | Pa | ≤3 | |
| Pumping level | / | 2 | |
| Working power | / | AC380V 50Hz,3P or as per buyer’s option | |
| Total power | kW | 10 | |
| Vacuum connection | DN | 50 | |
| Size | mm | 1550*1250*1680 | |
| Weight | kg | 780 | |
| *Due to different equipment configurations, its dimensions, weight will vary slightly. | |||
1. High-Flow Evacuation Capacity
300 L/s pumping speed greatly reduces processing duration for midium-volume transformers and improves efficiency.
2. Intelligent & Precise Control
Real-time vacuum monitoring, automatic constant vacuum and fault alarms ensure stable and safe operation.
3. Anti-Suckback Pump Protection
Built-in anti-backflow system prevents oil contamination, protecting core pumps and extending service life.
4. Continuous Long-Hour Operation
Optimized thermal design allows stable non-stop working without performance degradation.
5. Multi-Scenario Applicability
Suitable for factory production, on-site overhaul, grid upgrades, equipment commissioning and quality testing.

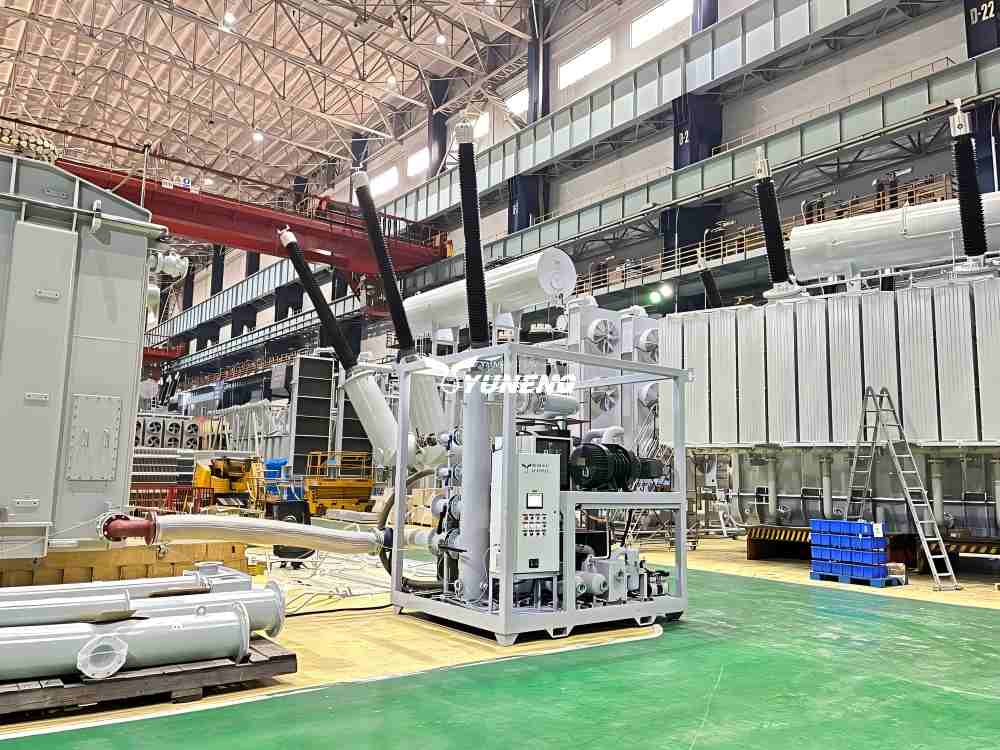

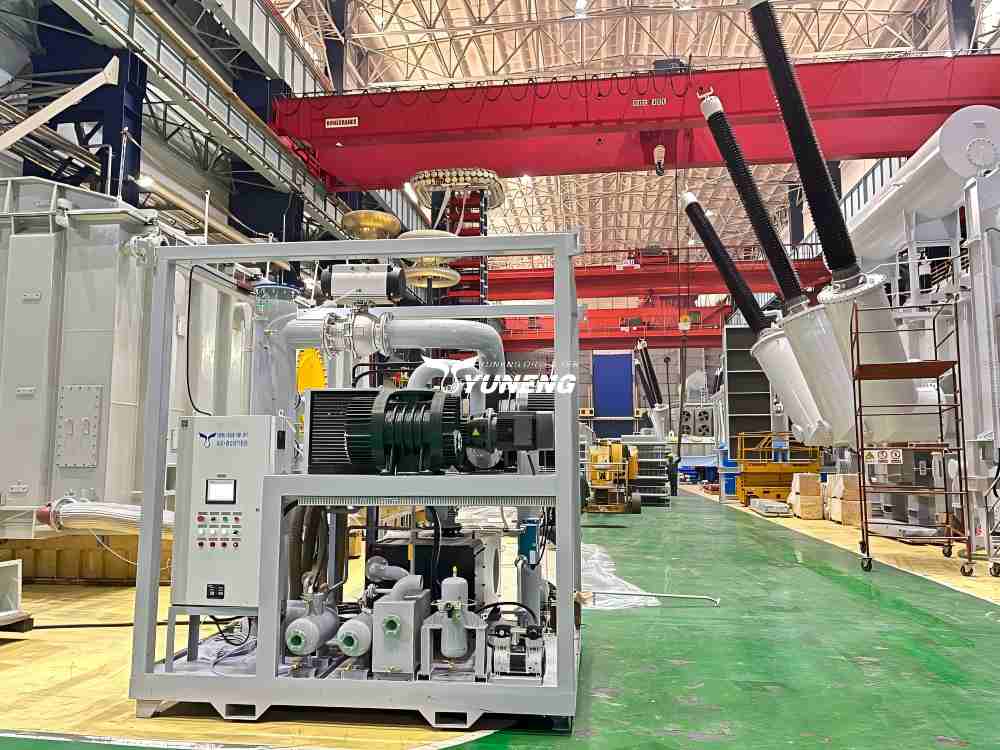

1. 220kV Transformer Manufacturing
Provides stable high-vacuum conditions for drying and evacuation in automated production lines.
2. Power Grid Upgrade & Expansion
Widely used in midium substation construction and national power grid modernization projects.
3. Midium Transformer On-Site Overhaul
Supports on-site drying, evacuation and performance recovery for key substation transformers.
4. Factory Quality Assurance & Testing
Used for final vacuum testing and performance certification before product delivery.
5. Large-Scale GIS System Evacuation
Delivers efficient, standardized vacuum treatment for GIS in midium to large voltage substations.
