GF Dry Air Generator for Transformer Maintenance

  • GF Dry Air Generator for Transformer Maintenance produced by YUNENG is suitable for supplying dry air for transformer maintenance.
  • Dry air keeps the insulation of transformers and other power facilities in good condition.
  • Operators will not have a shortage of oxygen when maintaining transformers with the GF Dry Air Generator for Transformer Maintenance.
  • Using the GF Dry Air Generator for Transformer Maintenance saves time and improves efficiency.

Share to

Parameters GF Dry Air Generator for Transformer Maintenance

Item Parameter Unit GF-50 GF-100 GF-150 GF-200
Technical Parameter Flow M3/h 50 100 150 200
Working Pressure Mpa 0.6~0.8
Pressure Drop Mpa 0.05
Noise dB(A) 70
Working Power KW 380V-50Hz  3 Phase  4 Wire
Total Power KW 12 19 22 26
Size Length cm 215 215 230 230
Width cm 155 155 165 165
Height cm 230 230 230 230
Diameter DN 32 40 50 50
Weight Kg 900 980 1030 1050

The machine size and weight will change slightly due to different configurations

Features of GF Dry Air Generator for Transformer Maintenance

  1. With ATLASCOPCO air compressor and other good configurations to ensure long-term stable and reliable work
  2. More reliable, economical, convenient, and safer than nitrogen

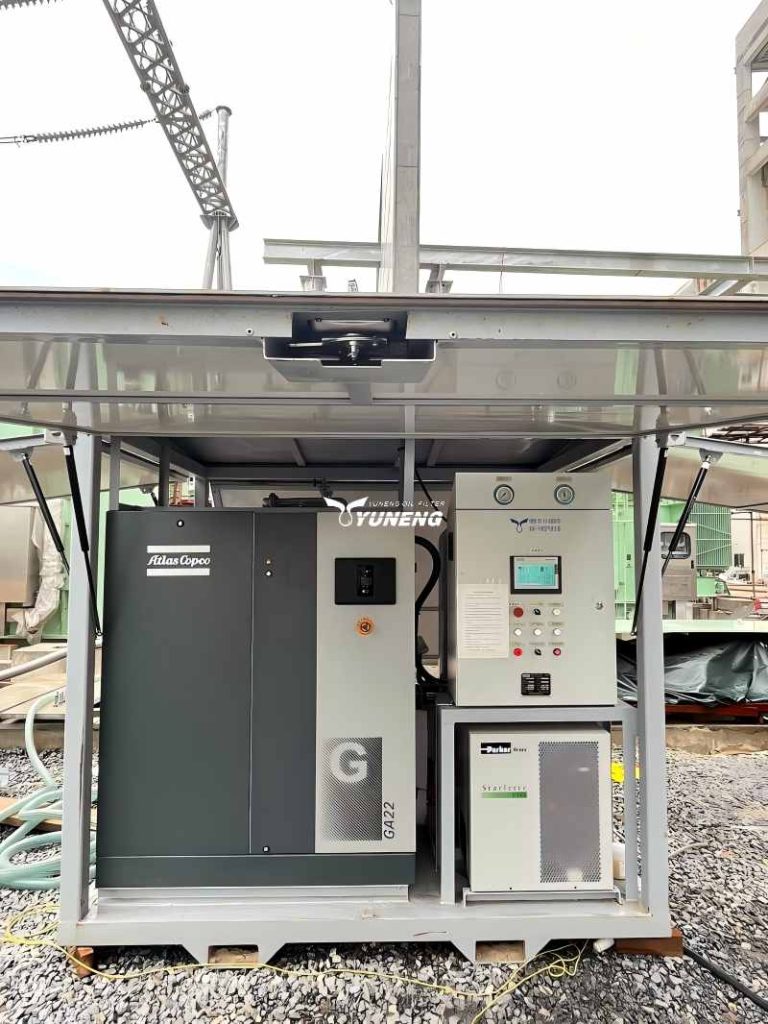

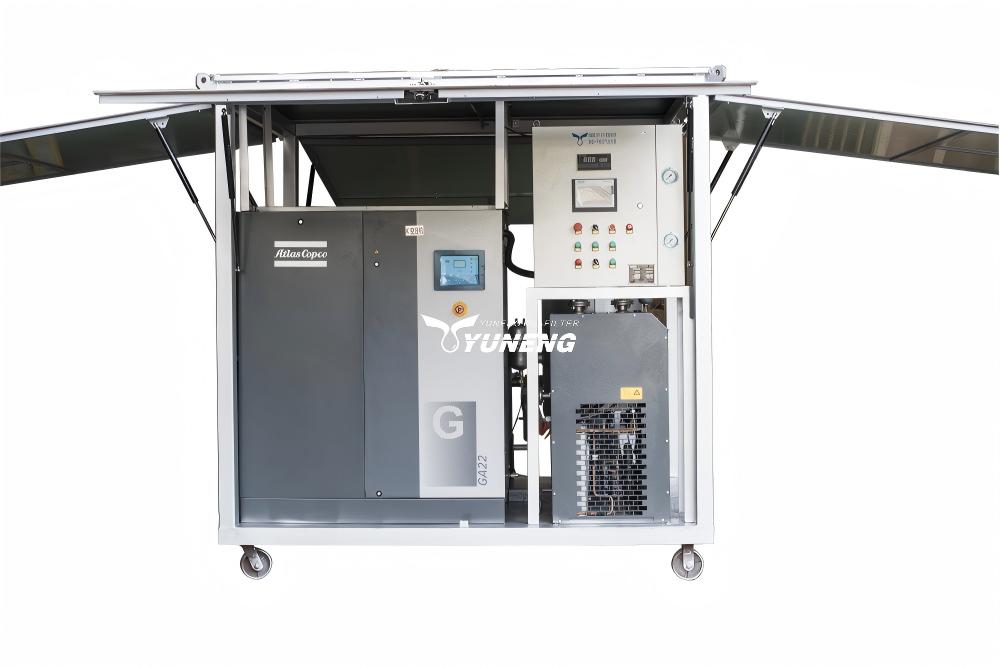

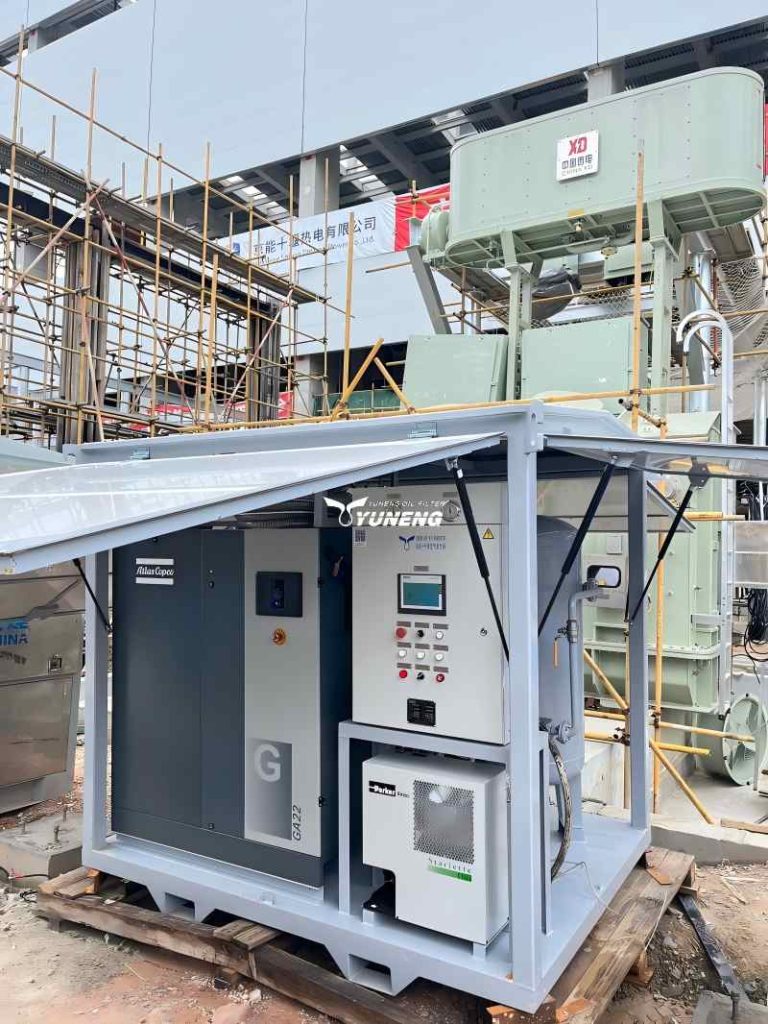

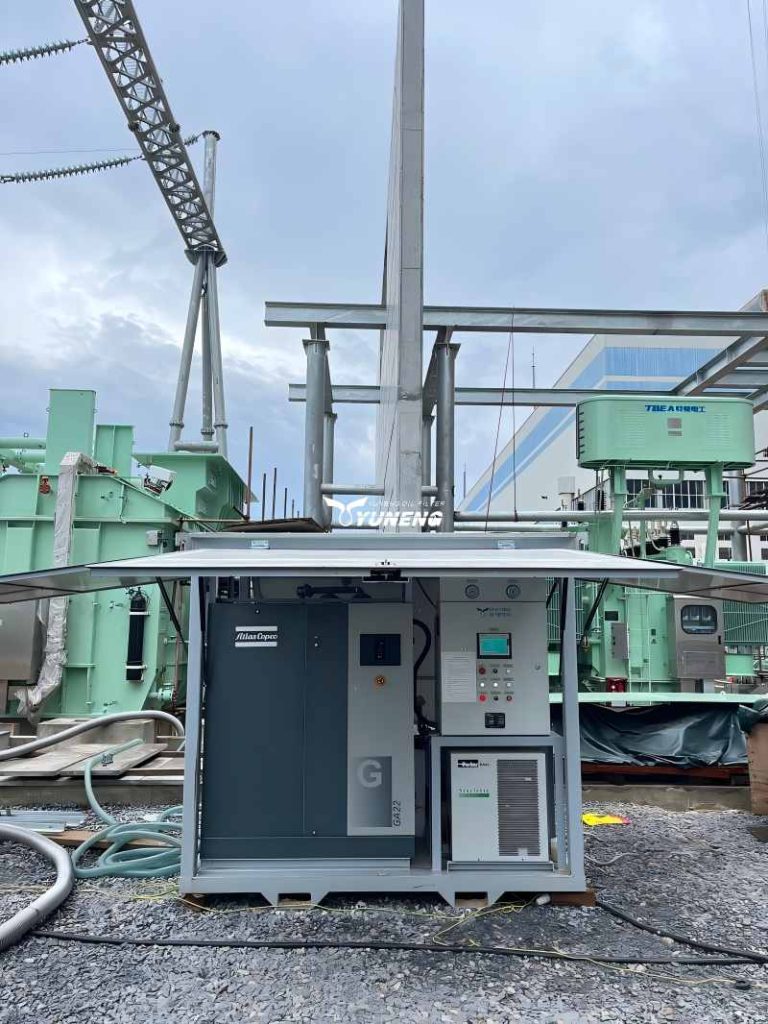

GF Dry Air Generator for Transformer Maintenance
GF Dry Air Generator for Transformer Maintenance

After Treatment Index of GF Dry Air Generator for Transformer Maintenance

Parameter Unit After Treatment Index
Discharge Pressure Mpa 0.02~0.03
Dew Point °C -50°C ~ -70°C
Particle μm
 		0.01
Oil content in air outlet ppm 0.01

Why Choose Us?

  1. Our products have a one-year guarantee for producing high quality(People-damaged components are charged).
  2. Our products have lifelong upkeep and spare parts supply.
  3. We accept freely design customized products according to customer requirements.
  4. We provide free training on equipment installation and operating procedures for your employees in need.

Packaging & Shipping

To be packed in iron or wooden case(s) for long-distance (ocean/air) transportation
