QTHS-1-10

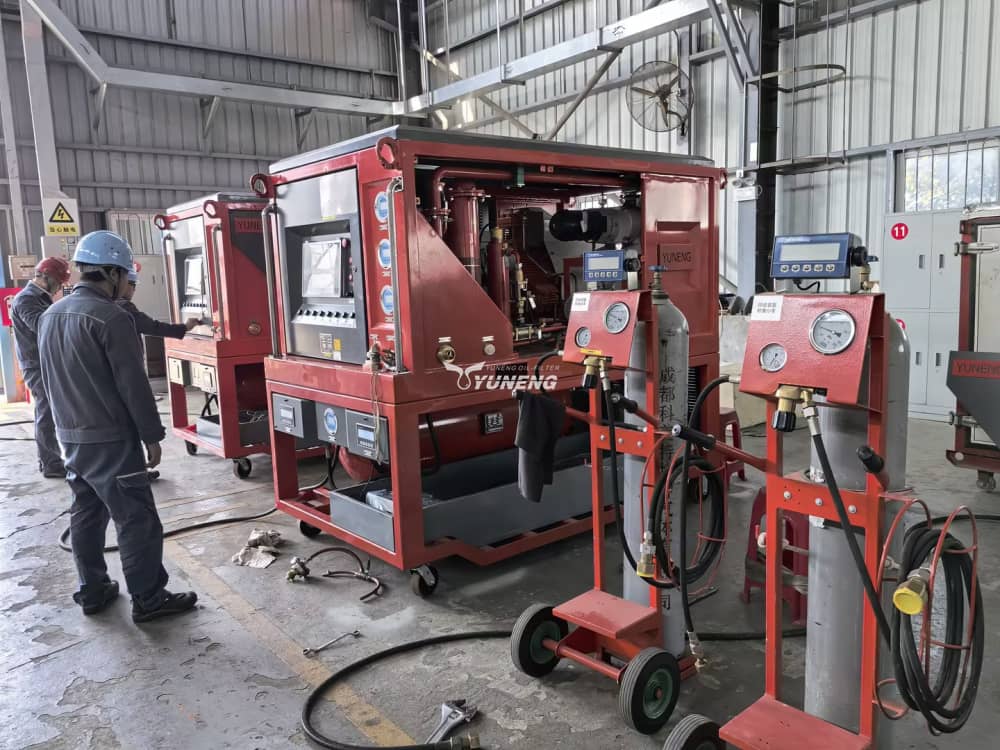

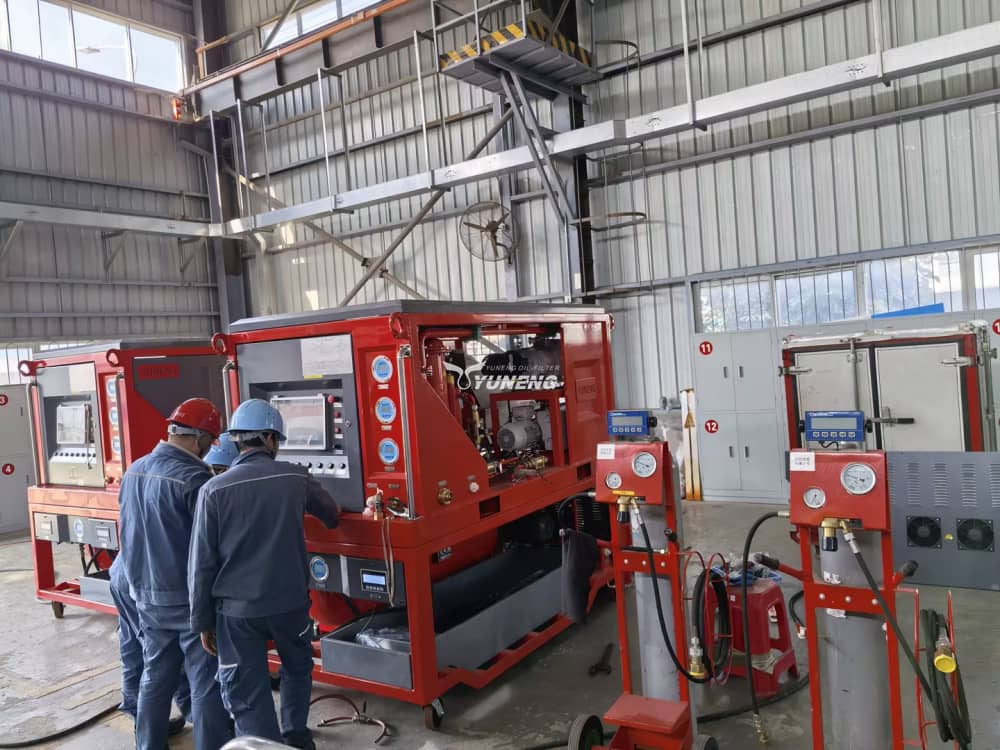

10m³/h SF6 Gas Recovery and Filling Unit
The YUNENG SF6 Gas Recovery System is a high-efficiency mobile unit designed for the fundamental management of Sulfur Hexafluoride gas in power high-voltage equipment.
This system provides a streamlined solution for evacuation, recovery, high-precision filtration, and controlled refilling. It is specifically engineered to recover SF6 gas from GIS and circuit breakers, passing it through a multi-stage physical filtration system to remove mechanical impurities, dust, and residual moisture. By ensuring the gas is clean and dry before storage or refilling, this unit protects the internal insulation of your electrical assets and extends their service life.
It is the ideal choice for routine maintenance where gas purity remains stable but physical debris and moisture need to be managed.
The QTHS-1-10 system is designed with modular units for vacuum-assisted recovery, filtration, and refilling, adaptable to different SF6 volumes and operational requirements.
| Item | Name of Parameter | Unit | QTHS-1-10 |
| Technical parameters | Capacity | m3/H | 10 |
| Recovery pressure | Mpa | ≤0.05 (or as per buyer’s option) | |
| 1m3 gas recovery time (intial pressure 0.6MPa) | H/M3 | ≤0.6 | |
| Final pressure | MPa | 0~0.8 Adjustable | |
| 1m3 gas recovery time (intial pressure 133Pa to 0.6MPa) | H/m3 | 0.6 | |
| The time required for 1m3 volume vacuity from 0.1Mpa to 133pa | H | 0.6 | |
| Ultimate vacuum | Pa | ≤10 | |
| Gasification way | / | Electric heating | |
| Liquefaction way | / | High pressure liquefaction | |
| Dry filter regeneration mode | / | Vacuum activation regeneration | |
| External dimentsion (including storage tank rack) | mm | 1600*1200*1800 | |
| Working power | V | As per buyer’s option | |
| Total electric power | kW | 8 | |
| Gas treatment index | Moisture | ppm | 60 |
| Oil content | ppm | 5 | |
| Filtering accuracy | ppm | 1 | |
| *Due to different equipment configurations, its dimensions, weight and gas treatment indexes will vary slightly. | |||
1. Compact and Robust Design
Reasonable, space-efficient structure with rust-proof and shock-proof components, ensuring reliable and safe operation.
2. Easy Maintenance and Handling
Convenient pipeline connection, disassembly, and assembly; equipped with lifting points to simplify transportation and installation.
3. Comprehensive Vacuum and Gas Handling
Capable of evacuating and measuring the vacuum of its own gas system and SF6 gas-insulated equipment, supporting recovery, storage, and pressure inflation of SF6 gas.
4. Effective Filtration and Purification
Multi-stage filtration removes moisture and trace solid impurities, preventing contamination from oil, air, or metal dust.
5. Integrated Safety and Monitoring
Includes oil-free compressor and vacuum pump, drying and particle filters, safety valves, and gas pressure/vacuum gauges; vacuum system prevents oil backflow.
6. Intuitive Operation Interface
10” touch screen displays the system diagram clearly, allowing easy monitoring and control, including cylinder filling functions.
- Substation Maintenance – SF6 recovery, filtration, and refilling for GIS, circuit breakers, and high-voltage switchgear.
- SF6 Gas Management Stations – Centralized handling and recycling of SF6 to maintain purity and compliance.
- Field Deployment – Mobile units suitable for on-site gas handling in substations, maintenance workshops, and temporary work sites.
