QTHS-1-15
15m³/h SF6 Gas Recovery, Filtration, and Refilling System
The SF6 Gas Recovery, Filtration & Refilling Equipment is developed for safe and efficient handling of sulfur hexafluoride (SF6) gas used in gas-insulated electrical equipment. The system integrates evacuation, gas recovery, filtration, storage, and refilling functions into a single service unit for maintenance and operational support.
Recovered SF6 gas is filtered to remove moisture and solid contaminants before being stored or refilled into electrical apparatus. The equipment ensures controlled gas handling while reducing gas loss during maintenance activities.

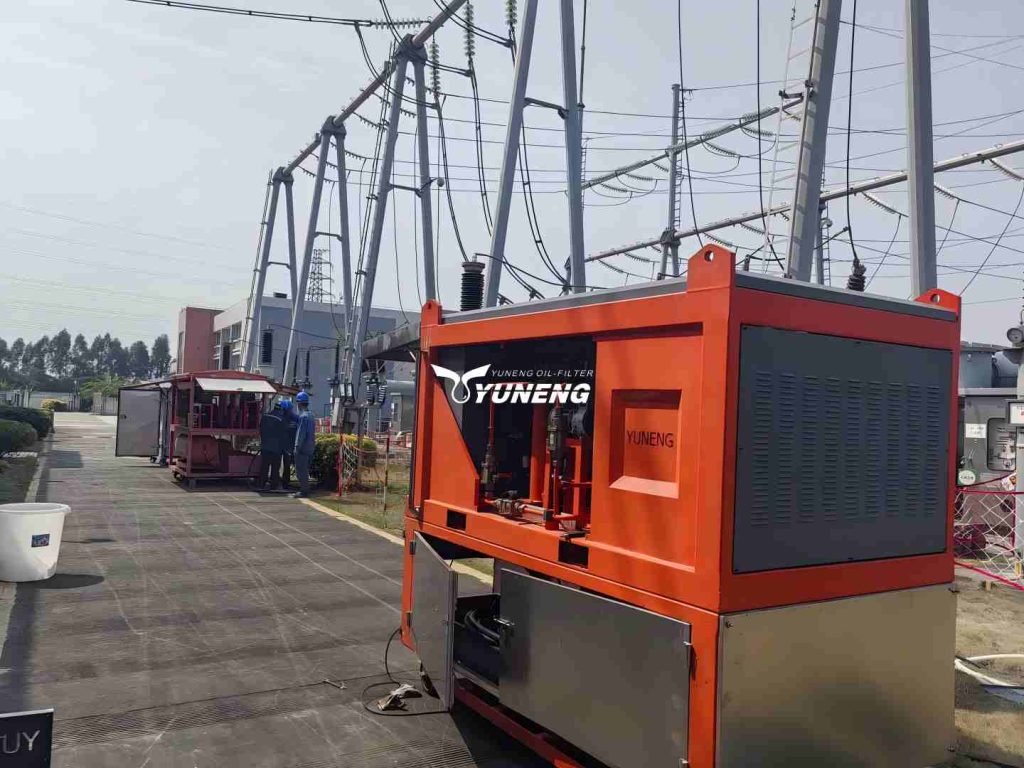

Designed with a compact structure and mobile configuration, the unit is suitable for both substation field service and workshop applications, supporting reliable and standardized SF6 gas management.

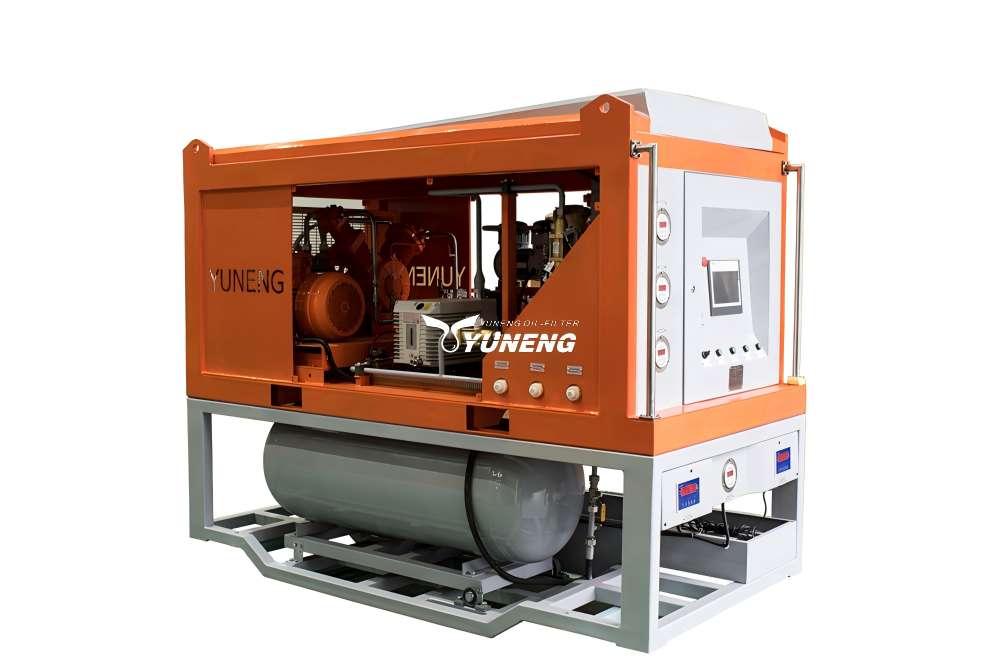

High-Efficiency 15m³/h SF6 Gas Recovery, Filtration, and Refilling System is a fully integrated gas handling solution, combining recovery, vacuum-assisted filtration, and precise refilling functions. The system ensures safe operation, accurate measurement, and effective removal of impurities under various service conditions. Optional industrial computer and remote control configurations provide flexible operation and process monitoring for substations, workshops, and field applications.
At YUNENG, we understand that different substations require different handling speeds. Our SF6 recovery systems are available in multiple capacities, ranging from compact 2m³/h units for distribution switchgear to high-capacity 10m³/h, 15m³/h, 30m³/h or larger compressor models for large-scale GIS projects. Whether you prioritize extreme portability or rapid recovery speed, we have the right configuration to optimize your maintenance workflow.
| Item | Name of Parameter | Unit | QTHS-1-15 |
| Technical parameters | Capacity | M3/H | 15 |
| Recovery pressure | Mpa | ≤0.05 (or as per buyer’s option) | |
| 1m3 gas recovery time (intial pressure 0.6MPa) | H/M3 | ≤0.4 | |
| Final pressure | MPa | 0~0.8 Adjustable | |
| The time required for 1m3 volume vacuity from 0.1MPa to 133Pa | H/M3 | 0.4 | |
| 1m3 gas recovery time (initial pressure 133Pa to 0.6MPa) | H | 0.4 | |
| Ultimate vacuum | Pa | ≤10 | |
| Gasification way | / | Electric heating | |
| Liquefaction way | / | High pressure liquefaction | |
| Dry filter regeneration mode | / | Vacuum activation regeneration | |
| External dimentsion (including storage tank rack) | mm | 1800*1200*1800 | |
| Working power | V | As per buyer’s option | |
| Total electric power | kW | 12 | |
| Gas treatment index | Moisture | ppm | 60 |
| Oil content | ppm | 5 | |
| Filtering accuracy | ppm | 1 | |
| The time required for 1m3 volume vacuity from 0.1MPa to 133pa | |||
1. Comprehensive Vacuum Handling
Performs vacuum pumping and measurement for both the system’s own gas tank and SF6-insulated electrical equipment.
2. Efficient Gas Recovery and Storage
Recovers SF6 gas from equipment, stores it safely, and provides accurate measurement for controlled refilling.
3. Reliable Gas Inflation
Inflates SF6-insulated devices to their rated operating pressure, ensuring proper functioning.
4. Effective Impurity Filtration
Filters and adsorb water and solid contaminants, maintaining cleanliness of the gas circuit.
5. Advanced Cylinder Filling
Equipped with a refrigeration-assisted cylinder filling function for convenient and safe gas transfer.
6. Optional Remote Monitoring
IoT-enabled platform can be included for remote observation and operational supervision if required
1. Comprehensive SF6 Management
Ideal for handling SF6 in GIS, circuit breakers, and other gas-insulated electrical equipment, ensuring clean and reliable operations.
2. Maintenance and Service
Perfect for workshops or service teams performing gas recovery, filtration, and refilling tasks efficiently and safely.
3. Flexible On-Site Operation
Mobile and easy-to-deploy design enables convenient use at substations or temporary field installations, providing reliable gas handling wherever needed.
