QTHS-1-30

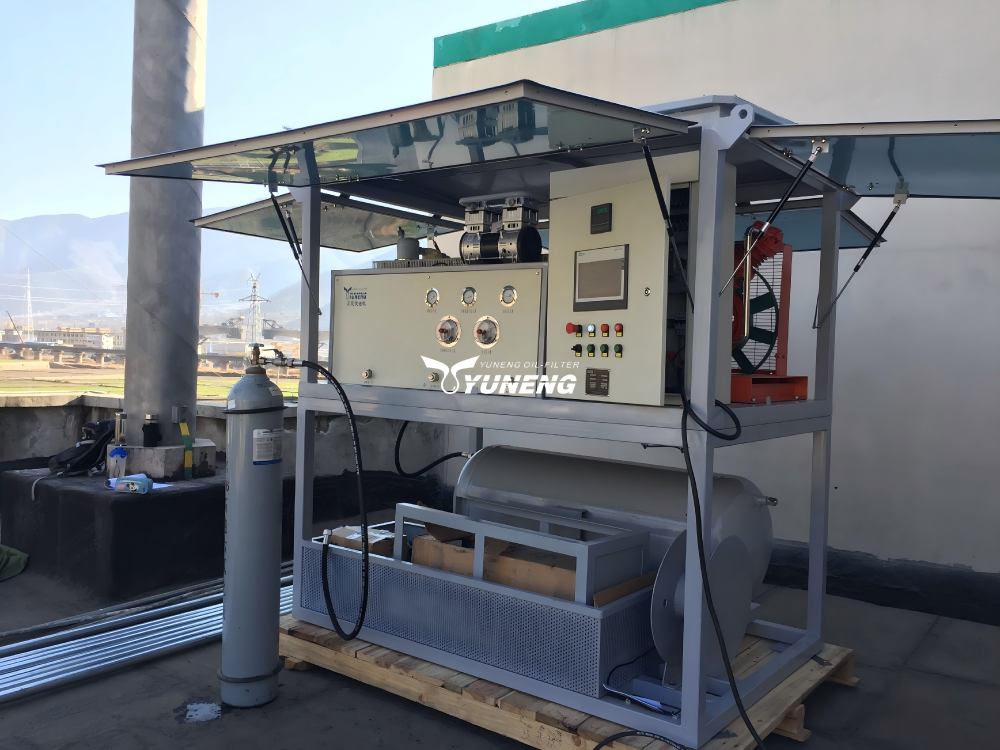

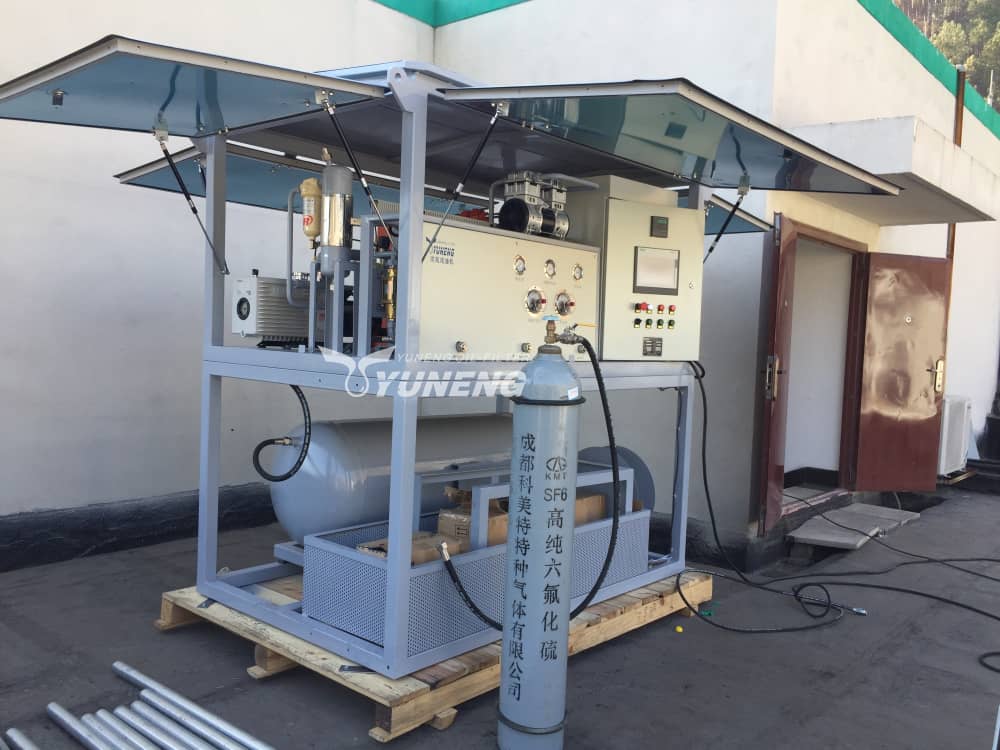

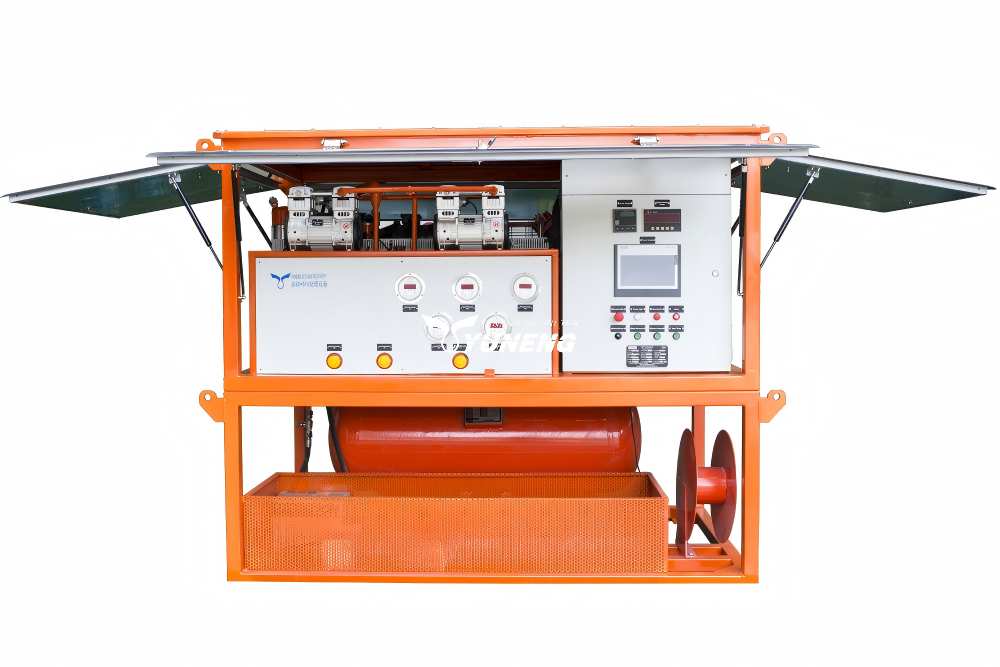

30m³/h SF6 Gas Recovery Service Cart
The SF6 Gas Recovery Service Cart is designed for professional handling of sulfur hexafluoride (SF6) gas in gas-insulated electrical equipment. The unit integrates vacuum evacuation, gas recovery, impurity filtration, storage, and refilling functions into one compact and mobile system.
The equipment enables safe and efficient maintenance of GIS, circuit breakers, and other SF6-insulated apparatus by removing moisture and particulate contaminants from recovered gas while ensuring reliable gas transfer and storage. The system is developed for emission-controlled operation, helping utilities and service teams manage SF6 gas in accordance with modern environmental and operational requirements.
With an integrated compressor system and user-friendly control interface, the equipment is suitable for both substation on-site service and workshop maintenance applications.
The following technical specifications apply to the model equipped with a 30 m³/h compressor, designed for medium-capacity SF6 gas handling applications. This configuration provides a balanced combination of recovery efficiency, equipment mobility, and operational reliability, making it suitable for routine maintenance and service operations of SF6-insulated electrical equipment.
The specifications below outline the main performance parameters, operating conditions, and functional capabilities of the system.
Our SF6 gas recovery, filtration and refilling equipment range is categorized primarily by compressor displacement (2,10, 15, 20, 30 m³/h and above) and vacuum pumping speed, allowing users to select the most suitable configuration according to gas handling capacity and recovery time requirements.
| Item | Name of Parameter | Unit | QTHS-1-30 |
| Technical parameters | Capacity | M3/H | 30 |
| Recovery pressure | Mpa | ≤0.05 (or as per buyer’s option) | |
| 1m3 gas recovery time (initial pressure 133Pa to 0.6MPa) | H/M3 | ≤0.2 | |
| Final pressure | MPa | 0~0.8 Adjustable | |
| The time required for 1m3 volume vacuity from 0.1MPa to 133Pa | H/M3 | 0.2 | |
| 1m3 gas recovery time (initial pressure 0.6MPa) | H | 0.4 | |
| Ultimate vacuum | Pa | ≤10 | |
| Gasification way | / | Electric heating | |
| Liquefaction way | / | High pressure liquefaction | |
| Dry filter regeneration mode | / | Vacuum activation regeneration | |
| External dimentsion (including storage tank rack) | mm | 1800*1200*1800 | |
| Working power | V | As per buyer’s option | |
| Total electric power | kW | 18 | |
| Gas treatment index | Moisture | ppm | 60 |
| Oil content | ppm | 5 | |
| Filtering accuracy | ppm | 1 | |
| The time required for 1m3 volume vacuity from 0.1MPa to 133pa | |||
1. Complete Service Function Integration
Combines evacuation, recovery, filtration, storage, and refilling functions within one unit, simplifying SF6 handling procedures and improving operational efficiency.
2. Effective Moisture and Particle Filtration
Multi-stage filtration system removes water content and particulate impurities, maintaining gas cleanliness during reuse without altering gas composition.
3. Stable and Controlled Gas Transfer
Compressor-based recovery ensures steady gas transfer and accurate refilling, supporting safe operation of SF6-insulated equipment.
4. Sealed Gas Circuit Design
Well-sealed air circuit minimizes air ingress and prevents external contamination during gas handling operations.
5. Simple and Intuitive Operation
PLC control system with clear operation interface enables easy operation and reduces operator workload.
6. Mobile and Service-Oriented Structure
Compact and movable design allows flexible deployment for on-site maintenance and indoor service environments.
1. Gas-Insulated Switchgear (GIS) Maintenance
Used for recovery, filtration, evacuation, and refilling of SF6 gas during installation, maintenance, and servicing of GIS equipment.
2. Circuit Breakers and SF6 Electrical Apparatus
Suitable for handling SF6 gas in high-voltage circuit breakers, transformers, and other gas-insulated electrical systems.
3. Substation Service Operations
Ideal for on-site maintenance teams requiring reliable SF6 gas handling with controlled emissions and efficient workflow.
