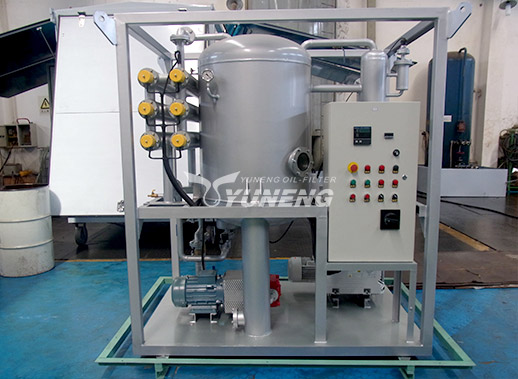

ZJB Series Transformer Oil Filtration Plant

ZJB Series Transformer Oil Filtration Plant is designed to remove contaminants (particulate, water, gasses, etc.). Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages.

Share to

Product Introduction

What is ZJB Series Single Stage Vacuum Transformer Oil Purification Equipment?

ZJB Series Transformer Oil Filtration Plant absorbs the advanced technology of similar products at home and abroad. It has innovative design and excellent cost performance. In terms of equipment performance, it has high working vacuum, oil filtering speed, oil quality protection and so on. The equipment can quickly remove the trace moisture, gas and solid particles in transformer oil. It also can quickly increase the flash point and withstand voltage of transformer oil. The primary processing energy can increase the withstand voltage of the transformer oil to more than 35kv. It is mainly used for ultra-high voltage power transmission and transformation equipment above 110kv, as well as capacitor oil and transformer oil for transmission systems. The series can be fixed or trailer-mounted, suitable for oil treatment in the installation and maintenance of large transformer oils, as well as vacuum oiling cycle drying of transformers.

Applications:

* ZJB Series Single Stage Vacuum Transformer Oil Purifier is designed to remove contaminants (particulate, water, gasses, etc.).

* Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.

* The machine is applied to power plants, power stations, power companies, metallurgy, petrochemical, railway and other industrial and mining enterprises to clean and disqualify electrical insulating oil. It can also vacuum inject insulated power equipment and vacuum dry electrical equipment. Besides, this machine can be used together with the transformer oil regeneration decoloring device to increase the functions of acid removal, decolorization, decarburization, and dielectric loss.

Product Features:

Suitable for voltage grade ≤110KV transformers.
Compact in structure, simple in operation.
Convenient in maintenance, low cost.
The ZJB series single stage vacuum transformer oil purification plant adopts the most advanced oil filtering technology.
This product is manufactured with the highest quality fittings.
The machine filters transformer oil, hydraulic oil and other waste oils at a high speed, and the oil obtained by filtration has high quality.

Why do Customers Choose Our Transformer Oil Purification Equipment?

* The ZJB series single stage vacuum transformer oil purification plant is manufactured by Yuneng Oil Purifier Manufacturing Co., Ltd. and this company is one of the most famous companies in Chongqing. The quality of products produced by this company is reliable.

* We are a designing, engineering and manufacturing company capable of application customization for best solutions.

Parameter

Item	Parameter		TypeUnit	ZJB0.42KY	ZJB0.9KY	ZJB1.8KY	ZJB3KY	ZJB6KY	ZJB9KY
Technical parameter	Flow Rate		L/H	400	900	1800	3000	6000	9000
	Limit Vacuity		Pa	≤90
	Working Vacuity		Pa	≤666
	Working pressure		Mpa	≤0.5
	Temperature Range			45-65
	Power Supply			50Hz 380V 3-Phase 4-Wire
	Total Power		KW	4.1	10.5	13.5	34	67	97
	Inlet/Outlet Diameter		mm	15 / 15	15 / 15	20 / 20	25 / 25	32 / 32	50 / 50
	Size	Length	mm	65	110	130	150	175	215
		Width	mm	50	850	110	120	120	160
		Height	mm	90	1400	150	180	235	260
	Weight		Kg	120	200	310	560	680	1200
Oil treatment index	Breakdown Voltage		KV	≥55 (Spherical Electrodes)
	Water Content		ppm	≤10
	Gas Content		%	≤1
	Filtration accuracy		µm	≤1~3
