What are the Types of Lubricants?
1. Mechanical lubricating oil. It mainly includes vehicle engine oil, marine engine oil, and gas compressor engine oil. Mechanical lubricating oil is mainly used for mechanical equipment or various types of vehicles. By smearing on mechanical equipment or car engine, it can effectively prolong the service life of machinery or car engine.
2. Mechanical transmission lubricating oil. It mainly includes hydraulic oil, circulating oil, and gear oil. Mechanical transmission lubricating oil is mainly used in the body of mechanical equipment and applied to conveyor belts or gears. The function is to reduce contact friction, thereby improving work efficiency.
3. Special lubricants. It mainly includes fireproof oil, electrical insulating oil, and flushing oil. Special lubricants are mainly used to meet special lubrication requirements, and they can play multiple protective roles when applied to corresponding equipment.
According to different types of lubricating oil, YUNENG has also developed different types of lubricating oil purifier systems to meet the different needs of customers.

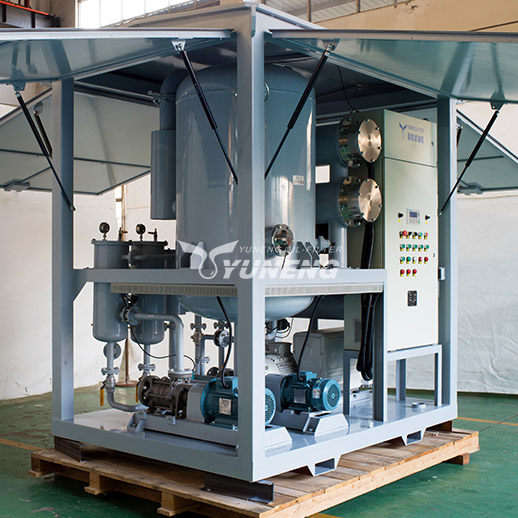

The First Type: ZJA Insulating Oil Filtration Machine
What types of lubricants can the insulating oil filtration machine be used for:
The insulating oil purifier can be used for the filtration and purification of insulating oil.
The working features of the insulating oil filtration machine

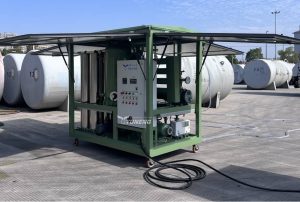

The insulating oil is filtered and purified by using a vacuum filtration process. You can choose a fixed enclosed type or a trailer mobile type according to the specific use situation. At the same time, there are also conventional ≤500KV models and UHV 750KV, 1000KV, ±660KV, ±800KV, and other models to choose from.
The function of the insulating oil filtration machine
The machine has a high working vacuum, and fast oil filtration and can protect the quality of the oil, and can filter out the moisture, gas, and other mechanical impurities in the insulating oil.
The Second Type: JT Lube Oil Purifier
What types of lubricants can lube oil purifier be used for:
This kind of lubricating oil purifier is mainly used for light oil, turbine oil, lubricating oil, etc, in which kinematic viscosity is less than 46m㎡/s.
The working process of lube oil purifier:
This kind of lubricating oil filter adopts a coalescence filter element and dehydration filter element.
When the oil passes through the coalescing filter element, because the coalescing filter element is made of hydrophilic material, water is adsorbed on the surface of the coalescing filter element filter layer, causing the water droplets to coalesce. Then, due to the action of gravity, when moving forward to the dehydration filter element, since the coalescing filter element is made of a hydrophobic material, the moisture is blocked outside the dehydration filter element, and the oil component can pass through smoothly. This completes the process of oil-water separation.
The function of lube oil purifier:
This kind of lubricating oil purifier has the functions of automatic demulsification, high-efficiency dehydration, and precision filtration. It can filter out moisture and other impurities in lubricating oil.
The Third Type: ZJC Hydraulic Oil Filtration Machine
What types of lubricating oils can the hydraulic oil filtration machine be used for:
The hydraulic oil filter is mainly used for hydraulic oil, turbine oil, mechanical oil, compressor oil, refrigeration oil, etc. with a kinematic viscosity less than 320m㎡/s.
The working process of hydraulic oil filtration machine:
The design of this vacuum oil filter is based on the different boiling points of oil and water.
Hydraulic oil purifier consists of a vacuum tank, vacuum pump, primary filter, heating tank, a fine filter, condenser, oil drain pump, and other components. The vacuum pump draws out the air in the vacuum tank to form a vacuum, and the oil enters the primary filter through the inlet pipe under the action of atmospheric pressure. The primary filter can remove the larger particles in the oil, and then the oil enters the heating tank, and the oil heated to 40~75℃ passes through the automatic oil float valve. The heated oil rotates rapidly through the jet wing to separate the oil into a semi-mist, and the water in the oil will rapidly evaporate into water vapor and be continuously sucked into the condenser by the vacuum pump.
The water vapor entering the condenser will be returned to the original water and released after being cooled. The oil in the vacuum heating tank will be discharged into the fine filter by the oil discharge pump, and the particulate impurities will be filtered out through the oil filter paper or filter element.
This is the process of removing impurities, moisture, and gas in the oil by the vacuum oil filter.
The function of hydraulic oil filtration machine:
It can deal with the problems of water ingress, emulsification, and particle pollution caused by industrial oils such as hydraulic oil and turbine oil during transportation and use. The hydraulic oil filtration machine effectively removes various contaminants from the oil.
The Fourth Type: DYJC Turbine Oil Purifier
What types of lubricants the turbine oil purifier can be used for:
This turbine oil purifier is suitable for dehydration treatment of oil products with water content below 2%, high water content, or serious emulsification.
The working process of turbine oil purifier:
The working principle of the turbine oil purifier is a combination of the above two oil purifiers. According to the customer’s own needs, the vacuum system can be used alone for filtration and purification, the coalescing dehydration system is used alone for filtration and purification, or it can be selected to simultaneously enable vacuum separation and coalescing dehydration to filter and purify oil products.
The function of turbine oil purifier:
The turbo oil purifier can be used as an online oil purification equipment for hydraulic turbines, steam turbines, or other lubricating oil units. Able to perform deep dehydration and meet the requirements of good oil quality indicators
The Fifth Type: YNZSY Waste Black Oil Recycling Machine
What types of lubricants can the waste black oil recycling machine be used for:
This waste black oil recycling machine is suitable for processing waste engine oil. It is widely used in the purification of internal combustion engine oil for various transportation such as automobiles.
The working features of the waste black oil recycling machine
The machine adopts vacuum degassing and dehydration technology, which can quickly remove harmful gases and moisture from waste oil. Through the filtration technology of small volume and large filtration area, it can quickly filter the colloid, asphaltene, suspended solids, and various compounds in the oil, and restore the color and index of the oil. And the use of advanced waste gas treatment technology can ensure that the environment is not polluted.
The function of the waste black oil recycling machine
The machine can remove mechanical impurities, deep oxides, carbon ions, and other fine impurities dispersed in the oil, and can also remove colloidal substances in the oil. Finally able to restore the oil to its original color. It can restore various performance indicators of waste oil such as internal combustion engines.
