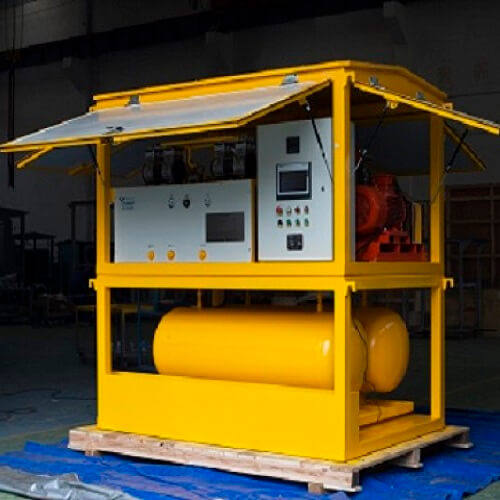

SF6 Gas Reclaiming Machine
- YUNENG SF6 gas reclaiming machine can be used to suck, liquefy and store SF6 gas from the insulating equipment.
- The quality of the retrieved SF6 gas complies with the Chinese GB8905-88 standard.
- Equipped with flexible pies and joints for retrieving, storing, and refilling processes.
- Adopts advanced principles and technologies of foreign companies, with advanced design, complete functions, reasonable structure, and simple and clear operation.
Share to
SF6 Gas Reclamation Machine Specification
| Type | High pressure liquefaction, air cool, mobile | |
| Working Environmental Temperature | -10℃ ~ 40℃ | |
| Recovery | Initial pressure | 0.8 |
| Final pressure (MPa) | ≤0.05 | |
| Time to recover 1m3 gas(h/m) | ≤0.5 | |
| Filling | Initial pressure | ≤133 |
| Final pressure (MPa) | 0.8 | |
| Time to recover 1m3 gas(h/m) | ≤0.5 | |
| Time for pumping vacuum from 0.1Mpa to 133Pa(h/m) | ≤1 | |
| Limit vacuum (Pa) | ≤10 | |
| Gas purity after recovery SF6 (50KGS) | Water content(PPM/V) | ≤60 |
| Oil content (PPM/W) | ≤5 | |
| Dust(Micron） | ≤1 | |
| Storing Tank | Storage method | Liquid gas |
| Pressure (MPa) | ≤5.0 | |
| Volume (L) | 300 | |
| Liquid volume(Kg) | 280 | |
| Liquefaction method | High pressure liquefaction | |
| Vaporization method | Heating with electricity | |
| Dry filter regeneration | Vacuum heating re-activated | |
| Power | 380V 50Hz 3 Phase 4 Wire (based on your requirement) | |
| Overall dimension | mm | 1600*1000*1900 (including the storing tank) |
| 1600*1000*1200 (without the storing tank) | ||
| Total power (KW) | ≤8 |
The machine size, weight will change slightly due to different configurations.
Why We Need SF6 Gas Reclaiming Machine?
- The YUNENG SF6 gas reclamation device is modern in design, fully functional, well-structured, and easy to operate.
- Its compression system uses a two-stage compressor, employing foreign technology to directly compress SF6 gas into storage tanks for oil-free and rapid recycling.
- This device utilizes a two-stage rotary vane vacuum pump with quick vacuuming and an oil return system.
- It has a recovery pressurization system that employs a single-stage rotary vane pump for high-speed recovery at low residual pressure.
- The machine features an advanced filter from the American Pinel Company. It includes built-in vacuum electric heating and high-efficiency adsorbent, ensuring exceptional purification without frequent adsorbent changes.
- The electrical system automatically confirms and adjusts to a three-phase power supply.
- Its control system incorporates the latest patented SF6 special valve, offering higher reliability than similar foreign ball valves.
- The storage system is customizable with various liquid storage tank specifications to meet user requirements.
- The SF6 gas recovery unit is air-cooled and mobile, operating without the need for an external water source.
After-Sales Service
- 1-year guarantee for producing high quality(People-damaged components are charged).
- Lifelong upkeep and spare parts supply.
- Freely design customized products according to customer requirements.
- Free training on equipment installation and operating procedures for your employees in need.
