Transformer Oil Filtration Machine Upgrade: High Vacuum and Double-Stage Purification
Table of Contents
Today’s power systems depend on transformers for the reliability needed to stabilize the grid. The insulating oil used in transformers provides cooling, dielectric protection, and insulation performance over time. Thus, keeping insulating oil clean is crucial to operational safety and efficiency. The modernization of the power industry is driven by the integration of renewable energy, tighter system requirements, and higher demand for electrical power, all of which the industry is responding to by modernizing its oil purification systems used in transformers. The industry is standardizing vacuum dehydration and double-stage purification systems. Concurrently, the use of portable filtration units and advancements in the oil filtration machine industry are modernizing the servicing of transformers.
This partly explains the focus of the article: to provide an overview of the changes brought about by using portable systems in vacuum and double-stage purification processes for transformer oil maintenance, as well as to summarize innovations introduced by these portable systems into the larger filtration machine industry.
Why Transformer Oil Purification Technology Is Improving
Today’s electrical grids function under circumstances that are more challenging than in prior decades. Renewable energy systems, such as wind and solar power, create varying loads that add even more thermal stress on the transformers. Furthermore, within the globe’s transmission infrastructures, many transformers are well beyond their designed life cycle. All of this oil deterioration results in a need for more advanced technology for the purification of oil.
To maintain a high level of dielectric strength, oil needs to be exceptionally clean and dry. It is believed that oil contamination over time may contribute to a decline in the breakdown voltage (BDV) of the oil and increase the danger of burning out the transformer; moisture, dissolved gases, oxidation residues, and solid particles are all culprits of aging oil. Due to increasingly stringent international regulations and a growing awareness of the need for preventive maintenance, utilities are more frequently using advanced systems to remove transformer oil and perform purification processes to ensure the safe operation of the electrical grid.
High Vacuum Technology: The New Industry Standard

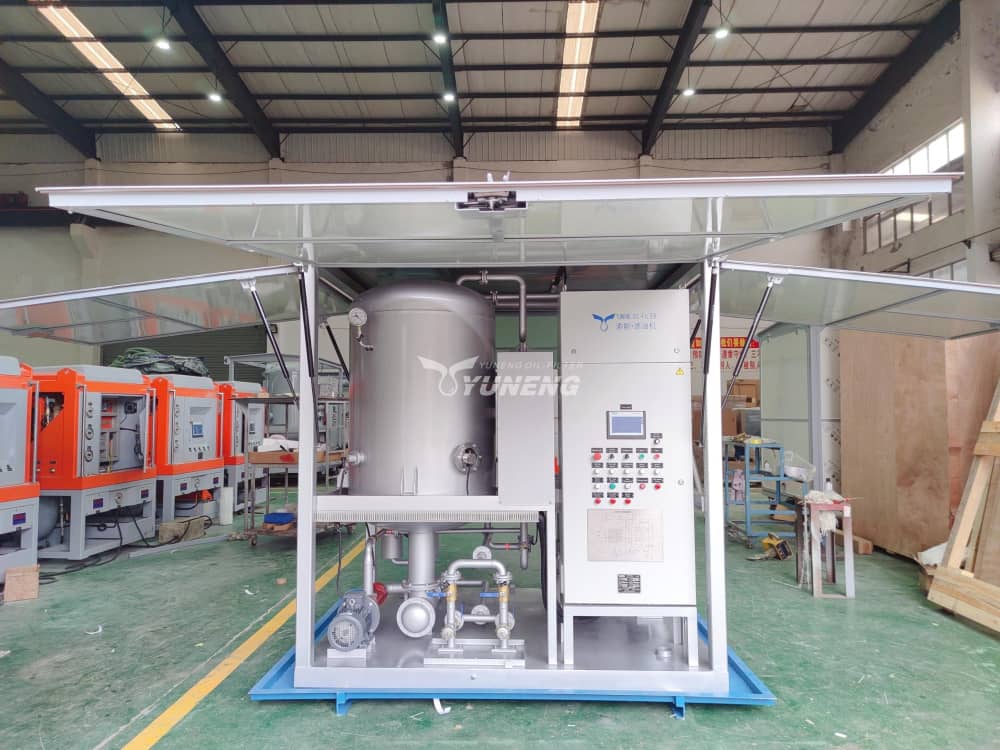

1. What Is a High Vacuum Transformer Oil Filter Machine?
High vacuum transformer oil filter machines are customized units that utilize vacuum dehydration and oil degassing technology and processes to remove moisture, gases, and other fine contaminants from the oil in transformers. Using the filtration system’s deep vacuum chamber that operates at vacuum levels lower than 5 Pa, moisture and air trapped in the oil and unable to be removed with standard filtration processes are efficiently eliminated.
Because water boils at lower temperatures under deep vacuum conditions, moisture from the oil can be removed without degrading the oil. This method restores the insulating properties of the oil and improves its breakdown voltage to a much greater extent than any other method.
2. Advantages of High Vacuum Transformer Oil Filter Machines
High vacuum filtration saves time and money by offering:
- Optimal dehydration: Transformer oil moisture content can be lowered to below 5 ppm of water in some cases by removing both free and dissolved water.
- Gas removal: The risk of partial discharge within the transformer is removed due to the dissolved oxygen, nitrogen, and other gases being removed.
- Long elevates the lifespan of transformer oil: The oil experiences less oxidation and chemical breakdown.
Essential High Voltage Transformer Oil Filtration Machines vacuum systems are required for 110 kV, 220 kV, and UHV equipment.
3. Applications in The Industry
High vacuum filtration is becoming more common in:
- Power substations
- Transformer stations for renewable energy
- Large immersed power transformers
- Industrial electrical equipment that requires high BDV oils

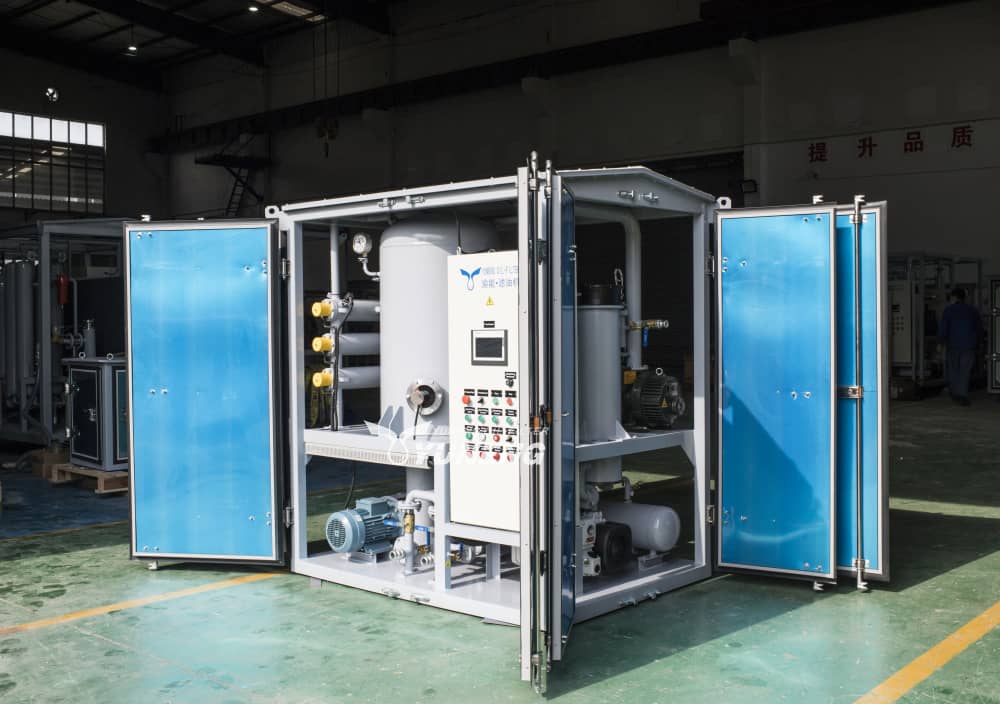

Double-Stage Transformer Oil Purification Machine: An Important Step Forward
1. Single-Stage vs Double Stage Oil Purification Machine
Single-stage transformer oil filtration machine provides dehydration and the removal of basic particles with minimal purification. In contrast, double-stage vacuum transformer filtration machine has filtration purification with substantially better quality. Two vacuum chambers with layered filtration technology are used, and purification is completed with depth and speed.

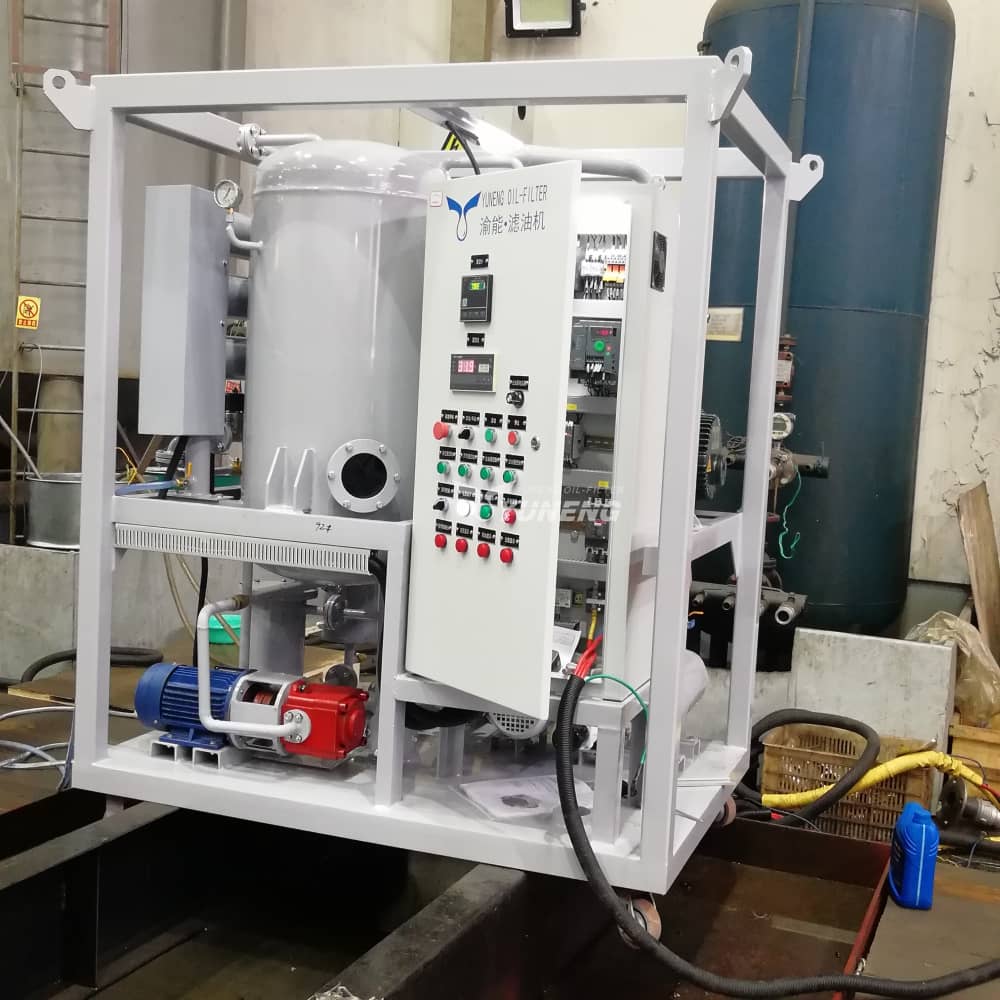

2. Benefits of Double-Stage Transformer Filtration Machine
Some of the benefits of double stage transformer filtration machines include:
– The ability to obtain a deeper final vacuum (usually below 1 Pa), therefore, water and other gases escape quickly
– Higher oil treatment capability, especially for larger transformers
– Lower final moisture content, BDV improvement is from 20-30 kV to more than 60-75 kV
– Decreased risk of oxidation during the processes
They are particularly well suited for the insulating oil of extra-high voltage equipment.
3. Industry Adoption Trends
Double-stage transformer filtration machines are becoming the accepted engineering standard for utilities and transformer manufacturers for installations with double-stage vacuum in high-voltage equipment. The double-stage purification technology is also becoming a standard requirement in many project specifications for renewable energy substations and ultra-high-voltage (UHV) transmission lines, where it is expected as part of the transformer commissioning and maintenance.

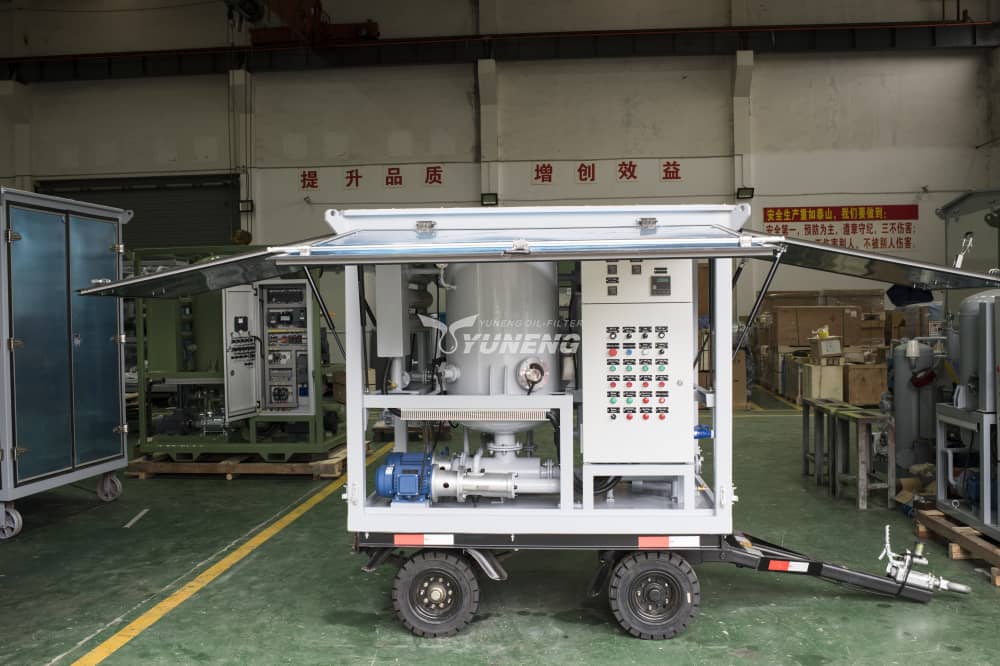

The Quick Development of Portable Transformer Oil Filtration
1. Why Are Portable Transformer Oil Filtration Machines So Popular?
With the growth of the power grid, new substations are being built. Transporting equipment, like transformers and oil, to new substations, such as wind farms, solar farms, and remote industrial sites, can become difficult, as oil is hard to move. As a result, having a portable transformer oil filtration machine becomes essential.
Portable system can allow field personnel to do oil dehydration and filtration on-site instead of having to transport contaminated oil to a centralized facility, and, as a result, eliminates a great deal of outage time.
2. What Are the Portable Transformer Oil Purification Machine Features?
Some of the portable features of these machines are:
- Compact or trailer-mounted with a built-in high vacuum system
- Fast setup and high mobility
- Full automation and control of the system with a touch of a button
- Functionality during emergency breakdowns, commissioning, or scheduled maintenance
3. What Are the Portable Transformer Oil Purifiers Being Used For?
Portable transformer oil filtration machines are being used in:
- Field service teams for remote substations.
- Mobile maintenance teams.
- Renewable energy constructions like offshore wind farms.
- Emergency recovery of transformers in a collapsed grid.
The portable oil filtration equipment is being used everywhere, which demonstrates the industry’s shift to maintenance adaptability.
How Transformer Oil Filtration Machine Manufacturers are Encouraging Technological Advancements
1. The Contribution of Transformer Oil Filtration Machine Manufacturers
Modern transformer oil filtration machine manufacturers transform and advance oil purification technology. Leading manufacturers focus on:
- Research and development on more optimized vacuum systems
- Incorporation of IoT for remote access
- Computational digitization for automation and safety
- Tailored offerings for the renewable, industrial, and utility industries
The oil purifier manufacturer’s innovations focus on meeting the needs brought by the maintenance of high-voltage transformers.
2. Primary Technological Advancements
Modern oil purifier manufacturers focus on the following upgrades:
- Enhanced vacuum pump systems, which allow for extremely low pressure (ultra-low pressure systems)
- Multi-Stage assemblies of stainless-steel filtration for enhanced and superior removal of particles
- Automatic moisture and gas detection systems
- Heating systems which are effective and efficient on energy
- Intelligent flow systems and automation through PLC
The upgrades ensure a reduction in the operator’s work, and high purification efficiencies are attained.
3. The Changes in Competition in the Market
The market for technologies that purify transformer oil is becoming more competitive. Manufacturers have to be more innovative in providing:
- Double stage transformer oil purifier with larger purification capacity
- More compact high vacuum purification systems that are portable
- Tailored systems for wind, solar, and hydropower stations
- Affordable solutions for emerging economies
Competition enhances the availability of technologies which are efficient and affordable purification solutions.
Future Outlook: Digitalization and Sustainability
1. Digital and Smart Monitoring Trends
Transformer oil purification is becoming increasingly digital. Several manufacturers have started integrating their systems with:
1. IoT devices
2. Remote monitoring
3. Predictive maintenance
4. Automated oil quality diagnostics
These features help maintenance teams track the oil condition in real time, thereby minimizing failures and allowing transformers to retire less frequently.
2. Sustainability and Eco-Friendly Purification
Utility operators have become more concerned about sustainability. The high vacuum and double-stage purification systems help meet these goals by:
1. Extending the transformer oil service life
2. Decreasing oil disposal needs
3. Providing on-site treatment to reduce carbon footprints
4. Supporting oil regeneration and recycling
As years go by and more preventive measures become the norm, the world will demand these purification systems and double-stage high vacuum pumps even more.
Wrap Up
High vacuum and double-stage purification technologies are totally changing the game when it comes to transformer maintenance. With power grids under more pressure than ever—thanks to renewable energy, aging equipment, and rising electricity demand—advanced purification systems have become a must-have. Whether it’s through high vacuum oil filter machines, portable filtration units, or the latest tech from manufacturers, the industry is pushing toward smarter, cleaner, and more efficient ways to keep transformers running.
These upgrades don’t just help transformers last longer—they also boost safety, reliability, and sustainability across the global power system, making them key tools for today’s energy infrastructure.
