As a manufacturer of commercial transformer oil treatment machine, we have witnessed firsthand the significance of oil quality to the effective and safe operation of power transformers. Based on years of experience in the industry and service to industrial and utility customers, we have found that untreated or aged transformer oil most often leads to insulation failure, overheating, and costly downtime.
To satisfy these standards, different transformer oil treatment processes are applied depending on the condition of the oil and the operating conditions of the transformer. Here, we explain our experience with the transformer oil treatment in detail.
What are the Types of Transformer Oil Treatment?
To maintain transformer reliability and extend service life, various oil treatment methods are employed based on the condition of the oil and the operational requirements of the transformer.
From my perspective, transformer oil treatment can be classified into three main types:
Transformer Oil Purification
Purification is the most common technique. Purification is directed towards the removal of water, dissolved gases, and solid impurities through vacuum dehydration, degassing, and fine filtration. Purification is suitable for new oil before filling a transformer or for in-service oil with minor contamination. It is very effective, low-cost, and can often be accomplished on-site without dismantling the transformer. Its primary aim is the restoration of the dielectric strength and oil clarity for safe further operation. Purification, however, does not eliminate chemical degradation products such as acids or sludge.
Transformer Oil Regeneration
When there is moderate aging or chemical oil contamination, regeneration is the best choice. Regeneration, through adsorbent materials such as activated clay or molecular sieves, removes by-products of oxidation, acids, and sludge, actually rejuvenating the physical and chemical properties of the oil. This is the standard practice in critical or large transformers where replacement of the oil would be operationally cumbersome and costly. Regeneration allows for reuse of oil in an environmentally responsible manner while maintaining transformer reliability. It can be done offline or online, depending on equipment design and operational constraints.
Transformer Oil Replacement
Replacement is a more complete procedure, applied when the oil is severely degraded or has reached its end-of-useful-life status. In this procedure, the old oil is totally drained, the transformer is flushed, and new high-quality oil is filled under vacuum. Replacement yields maximum insulation performance but at the cost of greater expense, downtime, and special precautions to avoid contamination. It is also used in the event of an upgrade from mineral oil to synthetic or ester-based oil for safety or environmental reasons.
The selection of the proper treatment method requires accurate oil analysis, transformer criticality information, and technical expertise, highlighting the importance of working with seasoned manufacturers and service providers.
Comparison of Different Transformer Oil Treatment Methods
Transformer oil treatment machine procedures—replacement, regeneration, and purification—find different applications depending on the oil’s condition, the transformer’s criticality, and operational requirements.
- Purification removes moisture, gases, and dissolved particulates to restore dielectric strength. It is cheap and fast but does not address chemical degradation.
- Regeneration goes a step further by removing oxidation by-products, acids, and sludge to restore physical and chemical properties. It is suitable for medium-aged oil and essential transformers, offering a cost-effective and ecological alternative to full oil change.
- Replacement is the most thorough solution that removes all contaminants by introducing new oil but is the most expensive and entails downtime.
| Method | Contaminants Removed | Suitable Condition | Advantages | Limitations |
| Purification | Water, gases, particles | Mild contamination, new oil | Fast, low-cost, on-site | Cannot remove acids or sludge |
| Regeneration | Acids, sludge, oxidation | Moderately aged oil | Restores oil properties, cost-effective, sustainable | Requires specialized equipment |
| Replacement | All contaminants (new oil) | Severely degraded or end-of-life oil | Complete restoration, highest oil quality | High cost, downtime required |
By comparing these methods, operators can select the most appropriate treatment based on oil analysis results, transformer importance, and long-term maintenance strategy, ensuring safe and efficient operation while optimizing operational costs.
What are the Applications of Each Type?
Transformer oil treatment is employed in a wide range of industries, based on the condition of the oil and the operational requirements of the transformers. Each category of treatment—purification, regeneration, or replacement—is well suited to its best applications.
1. Transformer Oil Purification

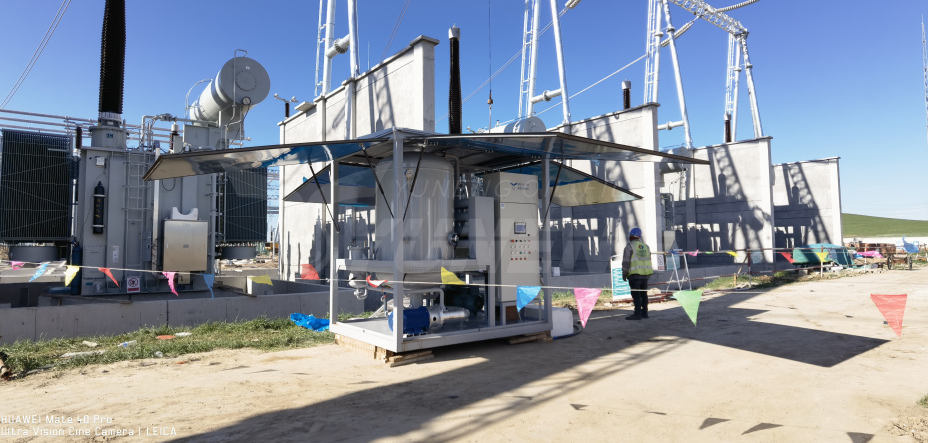

Purification is utilized most commonly in routine maintenance and preventive treatment. Utilities and industrial facilities utilize purification units to maintain oil quality in energized transformers, remove minor moisture or gas contamination, and extend time between major maintenance. It is also utilized widely in new transformer oil before initial filling so clean, high-dielectric-strength oil enters the system. On-site purification minimizes downtime and permits rapid response to minor contamination issues.
2. Transformer Oil Regeneration
Regeneration is particularly valuable to vital or high-voltage transformers whose oil has acquired moderate aging but replacement is unfeasible or not economical. Industry plants, power generation stations, and utility large systems utilize regeneration to remove acids, sludge, and oxidation products, restoring oil characteristics nearly as new. The process helps ensure sustainable operation by minimizing waste and restoring dependable performance in costly transformers. Regeneration can be done offline or online, depending on equipment capability and operating conditions.
3. Transformer Oil Replacement
Replacement of oil is applied when the existing oil is at the end of its life or cannot be treated regeneratively. It is commonly present in highly aged transformers, emergency maintenance, or upgrade to environmentally friendly ester- or synthetic-based oils. Replacement is assured to deliver maximum insulation and cooling but is accompanied by rigorous handling, flushing, and downtime planning. It is typically utilized for big industrial transformers, critical power grid transformers, and locations where environmental or regulatory approval dictates high-quality oil.
By understanding the specific applications of each kind of treatment, operators can select the optimum remedy in a way that yields optimal transformer performance, minimizes operating risk, and maximizes equipment life.
Tools Used in Transformer Oil Treatment
Selecting the right equipment and tools is critical to providing effective transformer oil treatment. Different treatments require special machinery in order to maximize contaminant removal, restoration of the oil properties, and safe handling.
