Portable Transformer Oil Filtering Machine: Step-by-Step Setup and Safety Guide
Table of Contents
As every transformer oil engineer understands, the condition of oil insulation profoundly affects a transformer’s performance and longevity. Moist, gassy, or otherwise impure oil loses dielectric strength and greatly increases the risk of overheating, partial discharge, or even catastrophic failure.
To many utility and industrial operations, a portable transformer oil filtering machine fulfills this need handily. Unlike stationary systems, the portable types are designed to go to the problem area. Whether to a remote wind farm or a substation desperate for oil dehydration, these machines can be positioned in minutes, eliminating transport time and hassle.
This guide conveys some of the many years spent in the field and supported by manufacturing. Instead of generalized suggestions, this contains actionable processes, safety measures, and grim spots after oil filter operations that are integrally effective in the maintenance of the transformer.

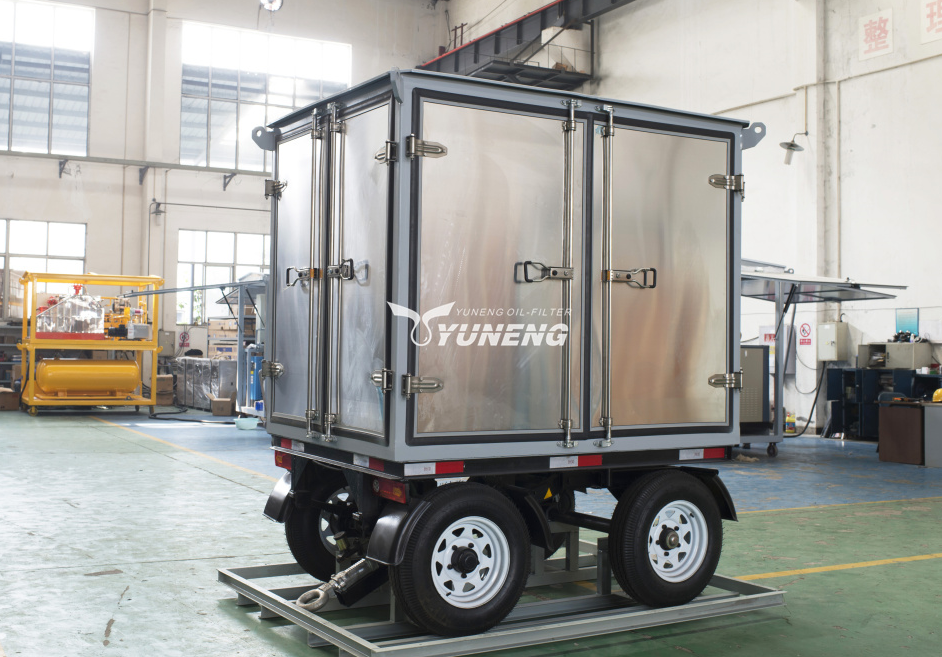

Why Choose Portable Type Transformer Oil Filtering Machine?
If a transformer is installed in a remote substation, wind farm, or industrial facility with no space for extended downtime, maintenance teams typically face an issue: how to keep the insulating oil in optimal condition without having it shipped out for treatment? A mobile transformer oil filtering unit solves the problem by bringing purification technology out of the shop.
Compared to stationary systems, suited to central facilities, portable units are designed to operate in in-field environments. They can be quickly sent out to do regular maintenance, seasonal testing, or emergency repair work. Treating oil on-site, operators remove the risks and costs of transporting large amounts of oil and can return a transformer to operation in hours instead of days.
From a producer’s perspective, surely the greatest advantage is flexibility. The machines are lightweight, easy to move around, and capable of handling various transformer sizes. If the goal is to dry out in a damp climate, degas after a fault, or do routine preventive maintenance, the machine is a good, cost-effective solution. Over the years, we have seen customers increase transformer life cycles significantly by including portable filtration as part of their maintenance routine.

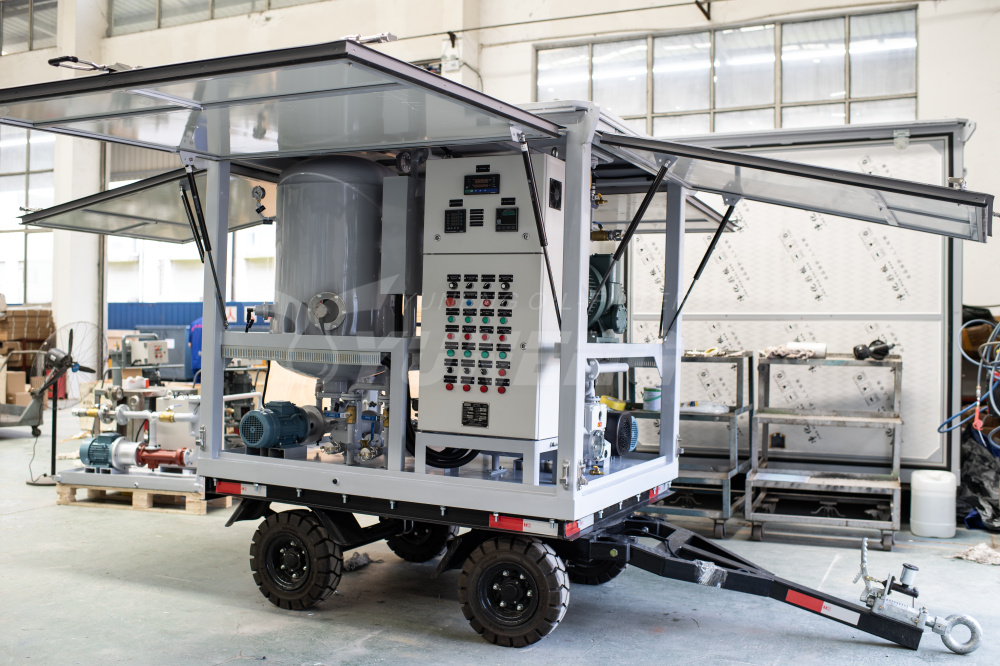

Pre-Setup of Portable Transformer Oil Filtering Machine
You can’t just jump into performing a portable transformer oil filtration operation without preparation. Not preparing can lead to inefficiencies, stress on your equipment, and even risks to your safety!
- Site Preparation: Select a flat and level area that can support the machine’s weight and allow the operator to maneuver freely. Make certain that the area is clear of any obstructions, including hazardous materials that can burn and may impede the hoses and power cables. Not only does a clean workspace minimize risks, but it also ensures that the operation is performed in a faster and smoother manner.
- Transformer Inspection: Inspect the transformer control valves and oil levels, and temperature. Hose connections with leaks and malfunctioning fittings that need to be fixed before coupling. Operators need to make sure that the transformer is not under a large load before it is exposed to a vacuum or heated oil, as the sudden shift can intensely stress the seals and joints.
- Machine Inspection: Inspect the hoses, couplings, and seals, and determine if wear or damage has occurred. Check the vacuum pump and heating elements for any issues. Make certain that voltage and frequency are adequate for the necessary requirements needed to operate the equipment.
- PPE: Protective gloves, eye protection, safety shoes, and antistatic clothing must always be worn. Put on gloves and safety gloves always and any time dealing with hot oil and pressurized systems. Pay attention, or else serious injury can occur.
Preparation extends the service life of the transformer and machine. Having effective oil purification depends on the proper preparation.

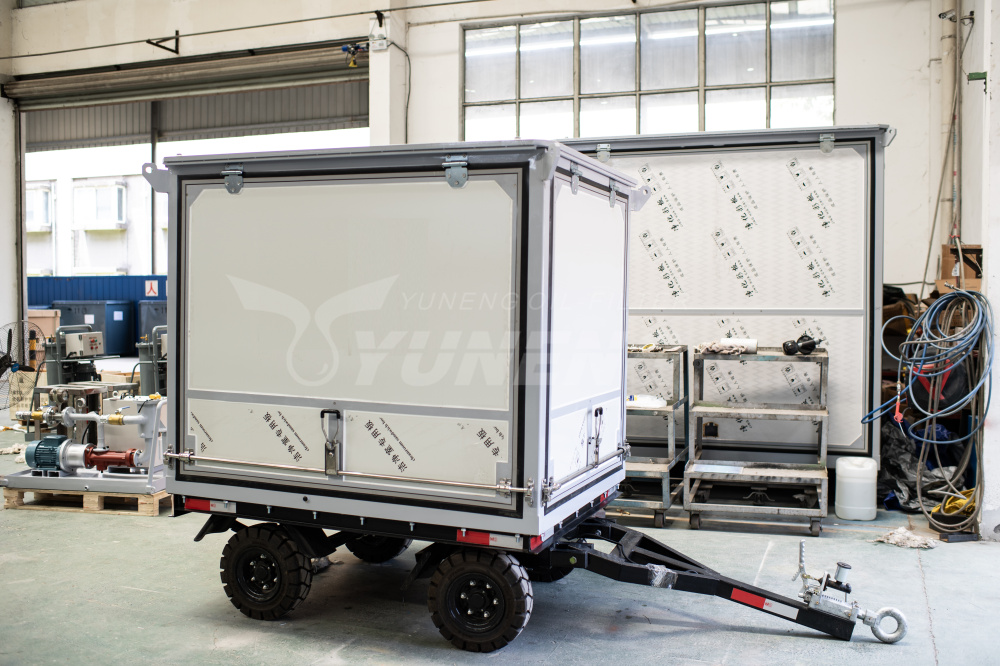

Step-by-Step Setup Guide
Operating a portable transformer oil filtering machine requires attention to detail. Ensures efficient purification of the oil and prevents any damage caused to the oil as well as the machine, along with the transformer. Based on field experience, here’s a practical guide.

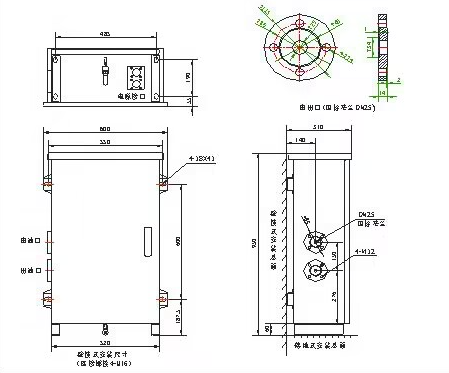

Step 1: Position the Machine
Ensure that the unit is placed on a flat and hard surface and more or less as close to the transformer as possible. It is important that the hoses are positioned in a way that they do not require any stretching in order to connect to the transformer, and that the operator does not compromise any safety. Do not the machine on uneven surfaces, or in close proximity to any object that may interfere with accessibility and movement.
Step 2: Connect Inlet and Outlet Hoses
The outlet hose should be placed on the filling port, and the inlet hose should be placed on the drain or sampling valve that the transformer is equipped with. Air leaks can negatively impact the vacuum oil, and it is crucial that the mounts and seals are checked. It’s important to pre tighten a few clamps, and then perform a manual check to assure that the area is completely clean.
Step 3: Prepare the Vacuum Pump
The vacuum pump needs to be started slowly. Any sudden movement can stress the gaskets on the transformer dramatically. The pump will be able to reach the preferred vacuum point, and only then should the the heater be started or circulation be started.
Step 4: Power Up the Machine
Switch on the heater and circulation pump and follow the instructions that were given. Check that the machine’s power supply is stable and grounded, and that the voltage matches the machine’s requirements. It’s best not to use an extension cord, as the drop in voltage affects performance.
Step 5: Monitor the Filtration Process
Pay attention to the vacuum pressure, oil temperature, and flow rate. If you have steady vacuum and flow, you are likely removing sufficient moisture and moist gas. Monitor the hoses for leaks or unusual vibrations. The machine will cycle until the moisture content is removed from the oil. This can be measured by a dielectric strength meter.
Step 6: Completion
To stabilize the machine, the heater and pump should be shut off, though the heater can be set to ‘off’ and not shut off completely. Be sure to follow the order stated in the machine’s instructions to decompress hoses. This will avoid the spillage of oil while keeping the machine oil and stress free.
This is a common portable transformer oil filtering machine setup procedure.
Safety Precautions During Portable Transformer Oil Purifier Operation
Even on a decent setup, there are still several risks when operating a portable transformer oil filtering machine. Oil can burn, components can wear out, and performing functions under a vacuum needs special focus.
- Make sure the machine stays grounded and connected to a stable power outlet. Do not rely on temporary wiring or cords that could trigger a fluctuation in current. Operators are responsible for wearing gloves, special glasses, and shoes to avoid burns and injuries when handling the oil.
- When the system is under vacuum, do not disconnect hoses and do not open any valves. Shifts in focus can destroy seals and increase pressure risks. Keeping the machine well-greased and oil levels managed can avoid jamming with noise or vibrations.
- In addition, abiding by the principles of standards and practices by the relevant governing bodies, such as IEC and the IEEE, is also of utmost importance. Following the appropriate steps and procedures ensures and protects the equipment and personnel while ensuring safe operation and safe filtration practices.
Post-Operation Best Practices Tips
When the filtration cycle ends and the system has been safely powered off, care for the machine and the transformer is essential in the post-operational tasks.
- To begin, never disconnect hoses or the unit before they have had time to cool off, as burns and excessive stress on the equipment can occur. Residual oil in hoses or the machine should be drained and put into containers that don’t allow for contamination, if they are disposable or if the oil is reusable, so be it. The oil should remain clean for use in the future.
- Wear and tear on the filter elements means they will need to be replaced if they are saturated. Consistent machine use will be accompanied by the necessity of maintaining the machine’s filters to ensure the oil remains clean.
- Do machine and component surfaces that are exposed, scrubbing exhaust, dust, and oil, and place them in a refrigerator to inhibit rust. Never place it in a humid place, as that will allow components to corrode and disintegrate.
- Document everything and make sure to include the crucial elements such as oil temperature, filtration time, vacuum levels, and the rate of flow. Keeping data on machine use and performance is a useful record for the future, aiding in avoiding machine issues, system checks, and repairs.
By following these post-operation practices, maintenance teams can maximize the lifespan of both the portable filtration machine and the transformer, while ensuring reliable performance in subsequent operations.
Final
A field transformer oil purification machine is a maintenance tool, sure, but it’s also a good idea when it comes to transformer reliability, especially in off-site or time-sensitive applications. By performing careful setup procedures, monitoring operation closely, and complying with post-operation best practices, operators can ensure effective purification of the oil without ramping up risks. Proper use of the machine not only contributes to transformer longevity but also reduces unplanned downtime and maintenance costs.
After reading this blog, you must know that integrating portable filtration in a regular maintenance process is one of the best ways to protect main power equipment and guarantee operational efficiency. So, do you need any requirements or interest in a portable transformer oil filtering machine? Contact us at any time!
